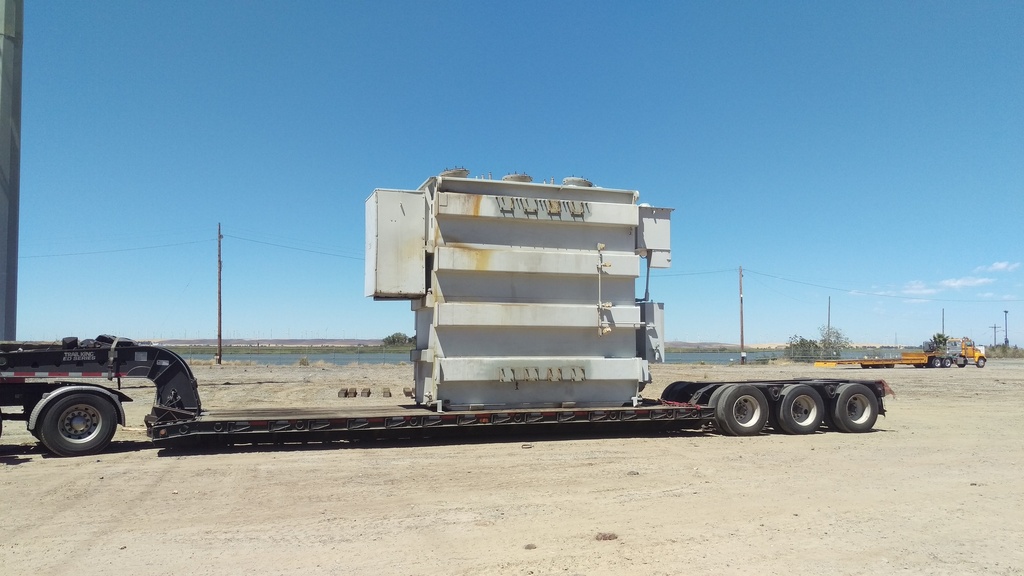

20000/37330 KVA, Pri 120000 D, Sec 13800Y/7970, GENERAL ELECTRIC, LTC:1

ONE (1) 20000/26670/33330/37330 KVA GENERAL ELECTRIC LOAD TAP CHANGING
TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA/FOA, 55/65 DEG. C
RISE, 8.42% IMPEDANCE, ALUMINUM WINDINGS, LTC TAP WINDING
COPPER, DRAIN & SAMPLE VALVE, LIQUID LEVEL GAUGE WITH CONTACTS,
LIQUID TEMPERATURE GAUGE WITH CONTACTS, PRESSURE VACUUM GAUGE,
FAULT PRESSURE RELAY WITH CONTACTS, DRAIN & FILTER VALVE,
PRESSURE RELIEF DEVICE WITH CONTACTS

HIGH VOLTAGE: 120000 DELTA
LOW VOLTAGE: 13800Y/7970
HV TAPS: 126000-123000-120000-117000-114000
LV TAPS: 15180 TO 11420 IN 32 STEPS

TOTAL WEIGHT: 126,500 LBS.
CORE & COILS: 47,100 LBS.
TANK & FIT.: 34,300 LBS.
MAIN TANK OIL: 43,500 LBS. (5,840 GALS.)
LTC OIL: 1,100 LBS. (150 GALS.)
DIMENSIONS: 223"H X 243.50"W X 234.50"L
SHIPPING: 170.50"H X 88"W X 154.25"L
