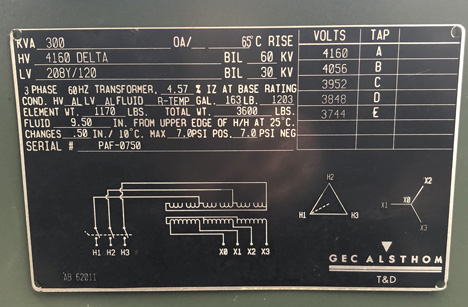

300 KVA, Pri 4160 D, Sec 208Y/120, GEC ALSTHOM, LIVE FRONT, RADIAL FEED, R-TEMP

JVT-3729:

ONE (1) 300 KVA GEC ALSTHOM COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEGREE C RISE, 4.57% IMPEDANCE, LIVE FRONT,
RADIAL FEED, LIQUID TEMPERATURE GAUGE, LIQUID LEVEL GAUGE, DRAIN &
SAMPLE VALVE, PRESSURE GAUGE, ALUMINUM WINDINGS, R-TEMP, S/N PAF-0750

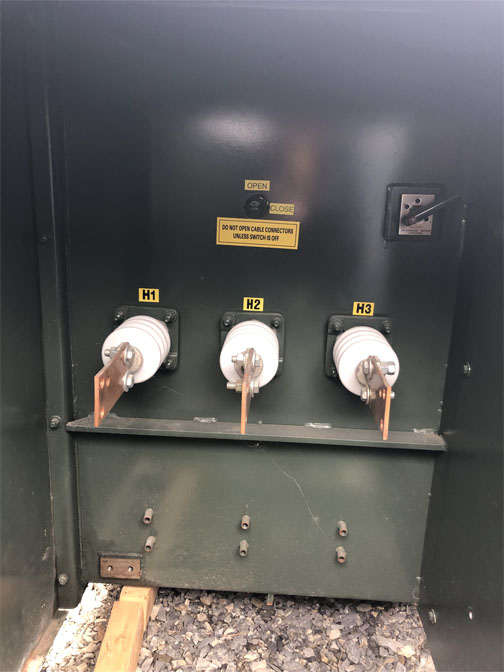

HIGH VOLTAGE: 4160 DELTA BIL: 60 KV

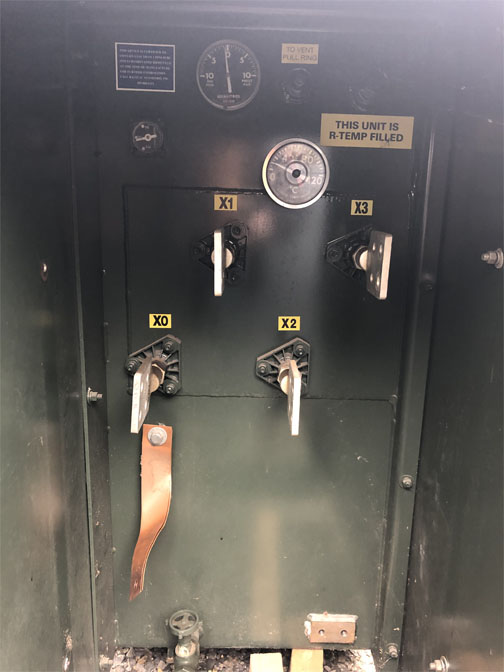

LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4160-4056-3952-3848-3744

TOTAL WEIGHT: 3,600 LBS.
FLUID: 163 GALS.
DIMENSIONS: 50 1/4"H X 53 1/4"W X 67 1/2"H
