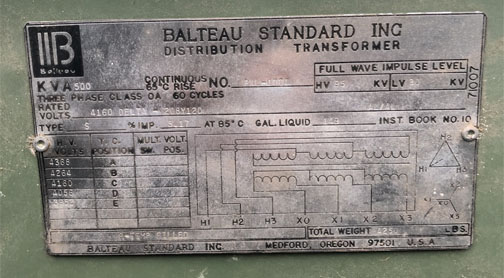

500 KVA, Pri 4160 D, Sec 208Y/120, BALTEAU, DEAD FRONT, RADIAL FEED, R-TEMP:1

JVT-3728:

ONE (1) 500 KVA BALTEAU COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEGREE C RISE, 5.17% IMPEDANCE, DEAD FRONT,
RADIAL FEED, LIQUID TEMPERATURE GAUGE, LIQUID LEVEL GAUGE, DRAIN &
SAMPLE VALVE, ALUMINUM WINDINGS, R-TEMP, S/N PNL-0774

HIGH VOLTAGE: 4160 DELTA BIL: 95 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4368-4264-4160-4056-3952

TOTAL WEIGHT: 4,250 LBS.
FLUID: 149 GAL.
DIMENSIONS: 45 1/4"H X 55 1/2"W X 77"D
