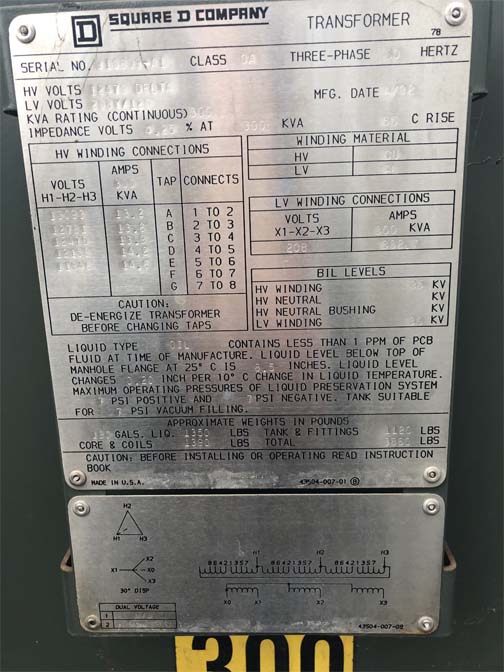

300 KVA, Pri 12470 D, Sec 208Y/120, 1992, SQUARE D, LIVE FRONT, RADIAL FEED:1
PADMOUNT TRANSFORMER
Product Number:
042010
Full Product Description
T-5823

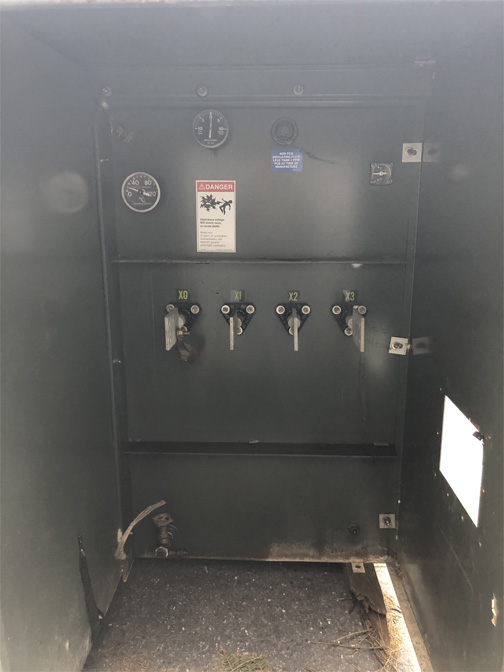

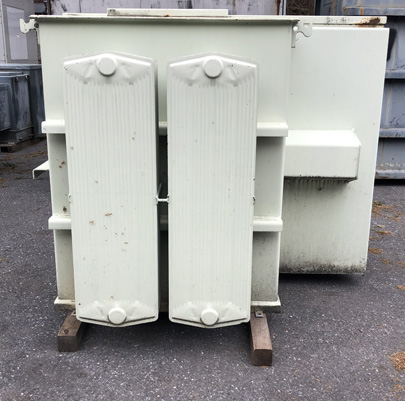

ONE (1) 300 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEGREE C RISE, 4.25% IMPEDANCE, LIVE FRONT,

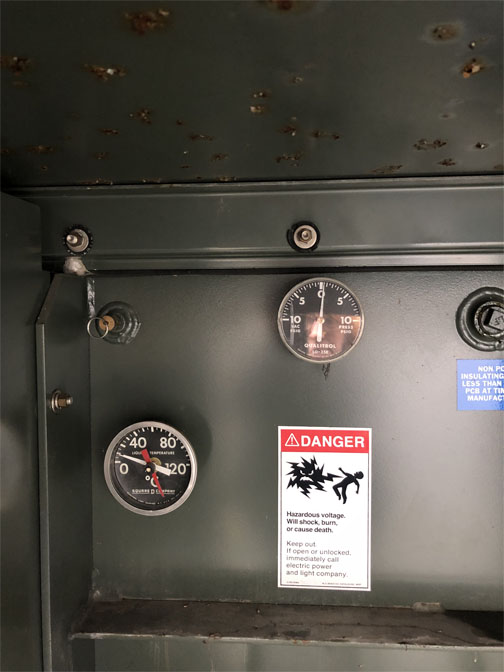

RADIAL FEED, HV COPPER, LV ALUMINUM, VACUUM PRESSURE GAUGE, LIQUID
LEVEL GAUGE, LIQUID TEMPERATURE GAUGE, DRAIN & SAMPLE VALVE, S/N
910609-A1, MFG. 1992

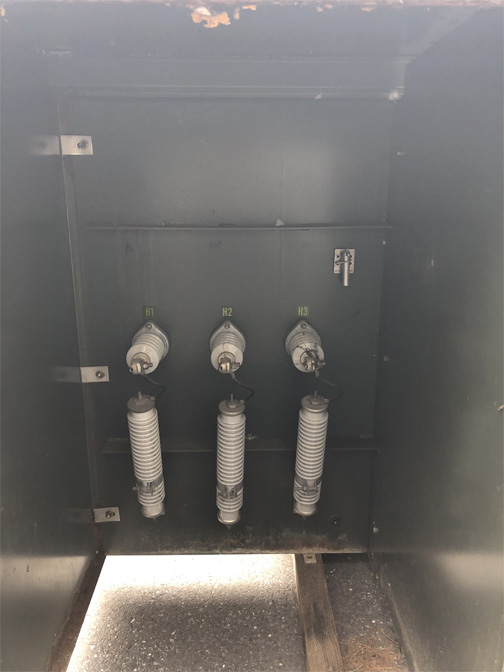

HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 13093-12781-12470-12158-11846
TOTAL WEIGHT: 5,860 LBS.
CORE & COILS: 1,390 LBS.
TANK & FIT.: 1,120 LBS.
OIL: 1,350 LBS. (180 GALS.)
DIMENSIONS: 74 1/2"H X 74 1/2"W X 70"D
