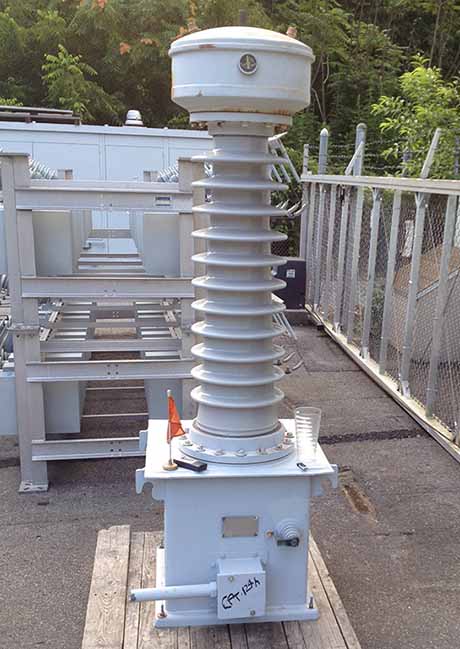

WESTINGHOUSE POTENTIAL TRANSFORMER, 69/115 KV, 600/1000:1, HERMETICALLY SEALED:3
POTENTIAL TRANSFORMER
Product Number:
041967
Full Product Description
CPT-124ABC:

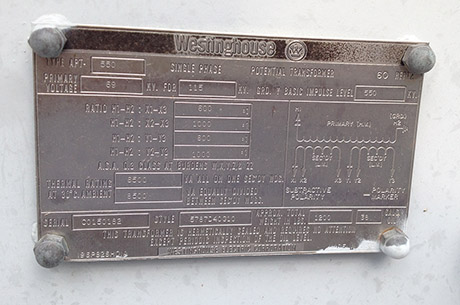

THREE (3) WESTINGHOUSE POTENTIAL TRANSFORMERS
TYPE APT-550
STYLE 5787D40610
69 KV FOR 115 KV GROUNDED WYE SYSTEM
SINGLE PHASE
60 HERTZ
550 KV BIL
HERMETICALLY SEALED
1205 LBS.
38 GALLONS OF OIL
SUBTRACTIVE POLARITY
THERMAL RATING AT 30 DEG. C AMBIENT:
6500 VA ON ONE SEC. WINDING
8500 VA EQUALLY DIVIDED BETWEEN SECONDARY WINDINGS
RATIO:
H1-H2 : X1-X3 - 600:1
H1-H2 : X2-X3 - 1000:1
H1-H2 : Y1-Y3 - 600:1
H1-H2 : Y2-Y3 - 1000:1
0.3 CLASS AT BURDENS W,X,Y,Z & ZZ
CPT-124A - S/N C0100982
CPT-124B - S/N C0149982
CPT-124C - S/N C0150182
