TRENCH CAPACITOR VOLTAGE TRANSFORMER, 115/69 KV - 115/69 V, 600/1000:1
CAPACITOR VOLTAGE TRANSFORMER
Product Number:
041956
Full Product Description

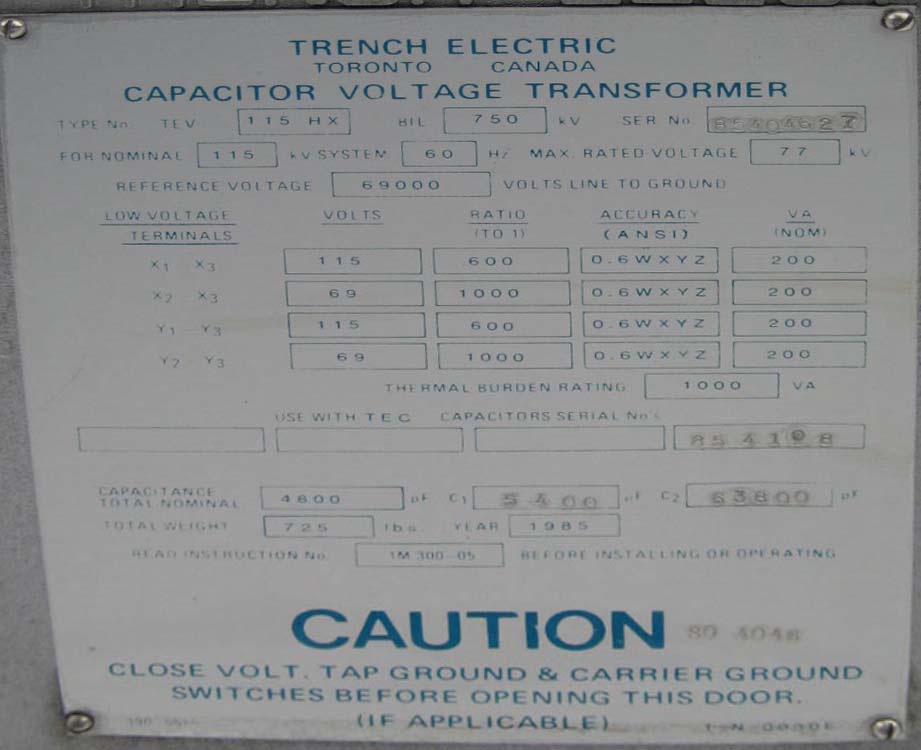

CPT-052C:
ONE (1) TRENCH CAPACITANCE VOLTAGE TRANSFORMER
TYPE TEV 115HX
115 KV NOMINAL
60 HERTZ
750 KV BIL
MAX. RATED 77 KV
REFERENCE VOLTAGE 69 KV LINE TO GROUND
CAPACITANCE TOTAL NOMINAL 4800 PF
C1 5400 PF
C2 65400 PF
725 LBS.
MFG. 1985
INST. 1M 300 05
S/N 85404640
LV TERMINALS VOLTS RATIO ACCURANCY VA NOMINAL
X1 X3 115 600:1 0.6 WXYZ 200
X2 X3 69 1000:1 0.6 WXYZ 200
Y1 Y3 115 600:1 0.6 WXYZ 200
Y2 Y3 69 1000:1 0.6 WXYZ 200
ONE (1) TRENCH CAPACITANCE VOLTAGE TRANSFORMER
TYPE TEV 115HX
115 KV NOMINAL
60 HERTZ
750 KV BIL
MAX. RATED 77 KV
REFERENCE VOLTAGE 69 KV LINE TO GROUND
CAPACITANCE TOTAL NOMINAL 4800 PF
C1 5400 PF
C2 65400 PF
725 LBS.
MFG. 1985
INST. 1M 300 05
S/N 85404640
LV TERMINALS VOLTS RATIO ACCURANCY VA NOMINAL
X1 X3 115 600:1 0.6 WXYZ 200
X2 X3 69 1000:1 0.6 WXYZ 200
Y1 Y3 115 600:1 0.6 WXYZ 200
Y2 Y3 69 1000:1 0.6 WXYZ 200
