RITZ COMBINED CT/VT, 115/69 KV - 115/69V, 2006, 600/1000:1, 200
COMBINED CT/VT
Product Number:
041948
Full Product Description
CPT-083D:

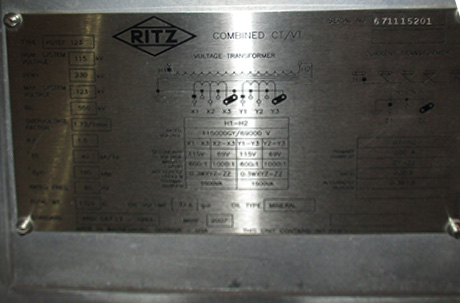

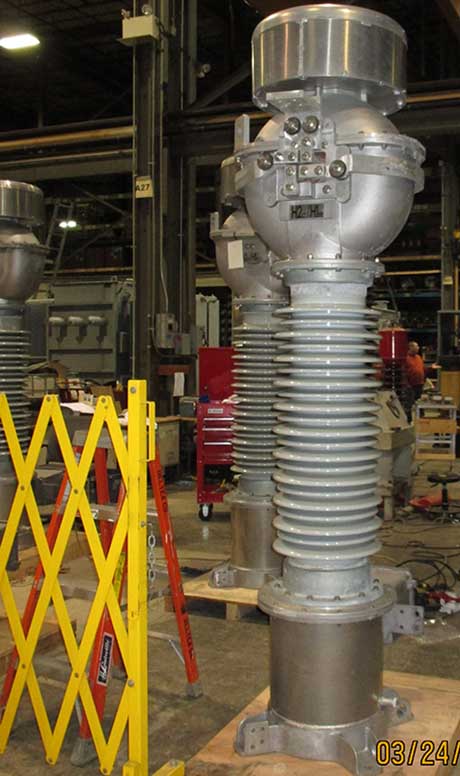

ONE (1) RITZ COMBINED CT/VT
TYPE KOTEF123
115 KV NOM.
230 KV PFWV
123 KV MAX.
550 KV BIL
MFG. 2006
1329 LBS.
VOLTAGE TRANSFORMER -
H1 - H2
RATED VOLTAGE 115000GY/69000
X1-X3 X2-X3 Y1-Y3 Y2-Y3
SEC. VOLTAGE 115 69 115 69
MARKED RATIO 600:1 1000:1 600:1 1000:1
ACC/BURDEN 0.3WXYZ.ZZ
THERMAL BURDEN 1500 VA
CURRENT TRANSFORMER:
H1-H2
PRIM. CURRENT 200:5
Z1-Z2
ACC/BURDEN 0.38B1.8
ONE (1) RITZ COMBINED CT/VT
TYPE KOTEF123
115 KV NOM.
230 KV PFWV
123 KV MAX.
550 KV BIL
MFG. 2006
1329 LBS.
VOLTAGE TRANSFORMER -
H1 - H2
RATED VOLTAGE 115000GY/69000
X1-X3 X2-X3 Y1-Y3 Y2-Y3
SEC. VOLTAGE 115 69 115 69
MARKED RATIO 600:1 1000:1 600:1 1000:1
ACC/BURDEN 0.3WXYZ.ZZ
THERMAL BURDEN 1500 VA
CURRENT TRANSFORMER:
H1-H2
PRIM. CURRENT 200:5
Z1-Z2
ACC/BURDEN 0.38B1.8
