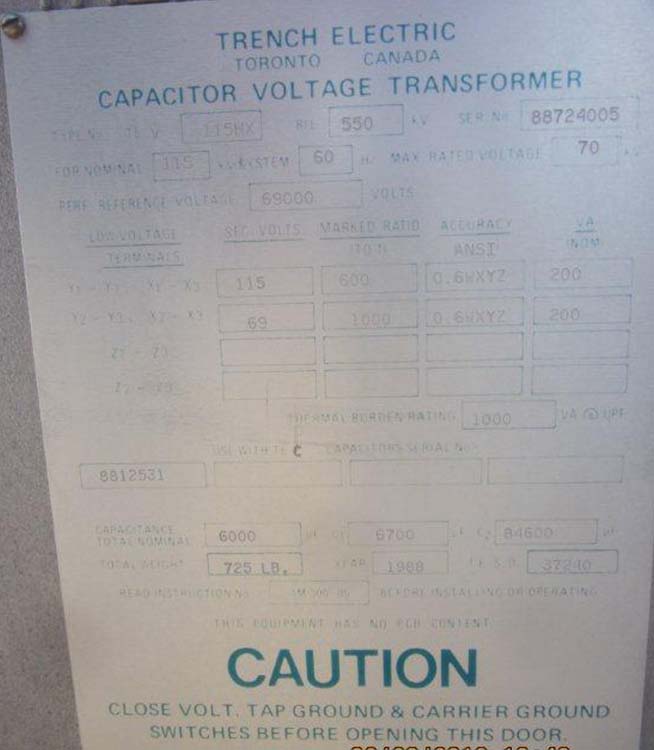

TRENCH CAPACITOR VOLTAGE TRANSFORMER, 115 KV/69 KV - 115/69V, 600/1000:1

CPT-074AC:

TWO (2) TRENCH CAPACITOR VOLTAGE TRANSFORMERS
TYPE REV115HX
115 KV NOMINAL SYSTEM VOLTAGE
60 HERTZ
550 KV BIL
70 KV MAX. RATED VOLTAGE
69 KV REFERENCE VOLTAGE
X1-Y3 - 115 SEC. VOLT, 600:1 RATIO, 0.6WXYZ ACC., 200 VA NOM.
Y2-Y3 - 69 SEC. VOLT, 1000:1 RATIO, 0.6WXYZ, ACC. 200 VA NOM
THERMAL BURDEN RATING - 1000 VA @ PF
CAPACITANCE TOTAL NOMINAL 6000 PF
725 LBS.
MFG. 1988

CPT-074A S/N 88724005
CPT-074C S/N 88724012
