TRENCH CAPACITOR VOLTAGE TRANSFORMER, 230/138 KV - 115/69 V, 1200/2000:2
TRENCH CAPACITOR VOLTAGE TRANSFORMERS
Product Number:
041940
Full Product Description
CPT-082AB:

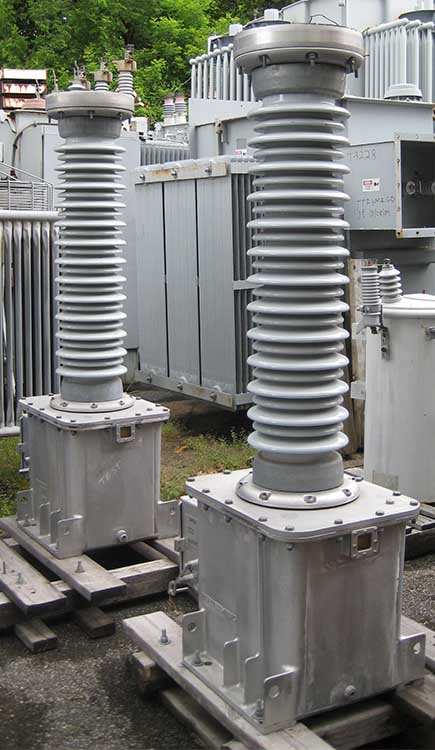

TWO (2) TRENCH CAPACITOR VOLTAGE TRANSFORMERS

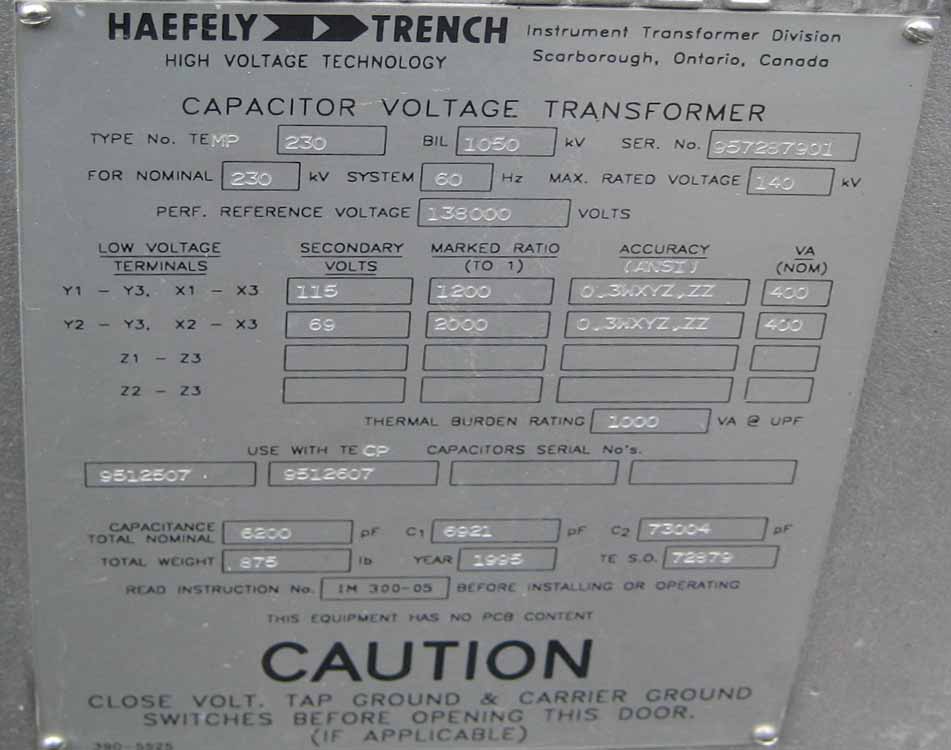

TYPE TEMP-230
230/138 KV PRIMARY
REF. VOLTAGE 138 KV
MAX. R VOLTAGE 140 KV
115/69 V SECONDARY
1200/2000:1 RATIO
1000 VA THERMAL BURDEN RATING
ACC. 0.3
875 LBS.
CAPACITANCE NOMINAL 6200 PF
CORONA RING
120"H IN 2 SECTIONS THAT CAN BE UNBOLTED
