RITZ COMBINED CT/VT, 115/69 KV PRI, Sec. 115/69 V, 2002, 600/1000:1, 1000:5
RITZ CT/VT
Product Number:
041939
Full Product Description
CPT-083D:

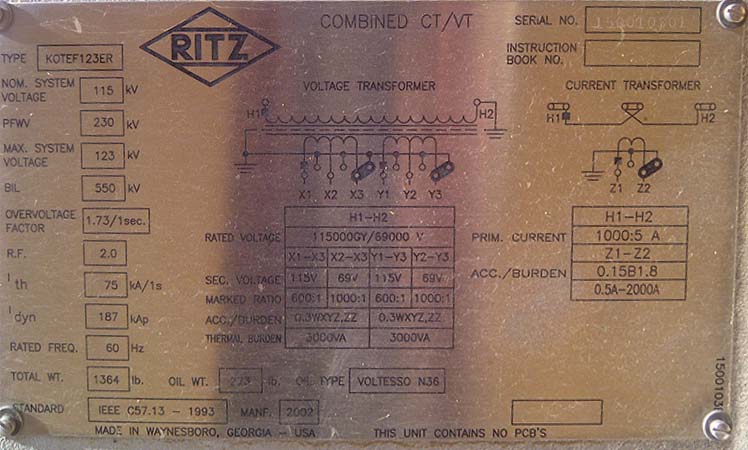

ONE (1) RITZ COMBINED CT/VT
TYPE KOTEF123ER
115 KV NOM.
123 KV MAX.
550 KV BIL
MFG. 2002
1140 LBS.
223 LBS. OF OIL
97.3"H X 17.7"W X 29"D
VOLTAGE TRANSFORMER -
H1 - H2
RATED VOLTAGE 115000GY/69000
X1-X3 X2-X3 Y1-Y3 Y2-Y3
SEC. VOLTAGE 115 69 115 69
MARKED RATIO 600:1 1000:1 600:1 1000:1
ACC/BURDEN 0.3WXYZ.ZZ
THERMAL BURDEN 3000 VA
CURRENT TRANSFORMER:
H1-H2
PRIM. CURRENT 1000:5
Z1-Z2
ACC/BURDEN 0.15B1.8
0.5A-2000A
ONE (1) RITZ COMBINED CT/VT
TYPE KOTEF123ER
115 KV NOM.
123 KV MAX.
550 KV BIL
MFG. 2002
1140 LBS.
223 LBS. OF OIL
97.3"H X 17.7"W X 29"D
VOLTAGE TRANSFORMER -
H1 - H2
RATED VOLTAGE 115000GY/69000
X1-X3 X2-X3 Y1-Y3 Y2-Y3
SEC. VOLTAGE 115 69 115 69
MARKED RATIO 600:1 1000:1 600:1 1000:1
ACC/BURDEN 0.3WXYZ.ZZ
THERMAL BURDEN 3000 VA
CURRENT TRANSFORMER:
H1-H2
PRIM. CURRENT 1000:5
Z1-Z2
ACC/BURDEN 0.15B1.8
0.5A-2000A
