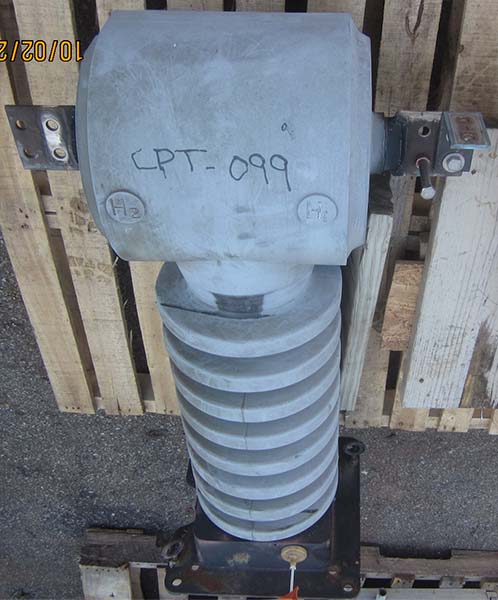

GENERAL ELECTRIC CT TYPE JKW-200, 34500 V, 600:5, CAT. 757X30G4:1
CT
Product Number:
041932
Full Product Description
CPT-099:
ONE (1) GENERAL ELECTRIC CT
TYPE JKW-200
CAT. #757X30G4
34500 VOLT
200 KV BIL
600:5 RATIO
GEH-230
645 LBS.
CONNECTION X2-X3 600:5
RF 2.0 @ 300 AMP
ACC C1 @ 60 HZ 0.3B-0.4 THRU B 2.0
CONNECTION X1-X3 1200:5
RF 1.5@ 300 AMP
ACC C1 @ 60 HZ 0.3B-0.4 THRU B 2.0
ONE (1) GENERAL ELECTRIC CT
TYPE JKW-200
CAT. #757X30G4
34500 VOLT
200 KV BIL
600:5 RATIO
GEH-230
645 LBS.
CONNECTION X2-X3 600:5
RF 2.0 @ 300 AMP
ACC C1 @ 60 HZ 0.3B-0.4 THRU B 2.0
CONNECTION X1-X3 1200:5
RF 1.5@ 300 AMP
ACC C1 @ 60 HZ 0.3B-0.4 THRU B 2.0
