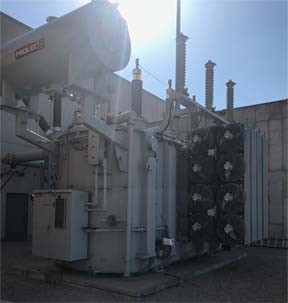

64/119.47, Pri 138000GRDY, Sec 69000GRDY X 13800. PROLEC, LTC, UNUSED

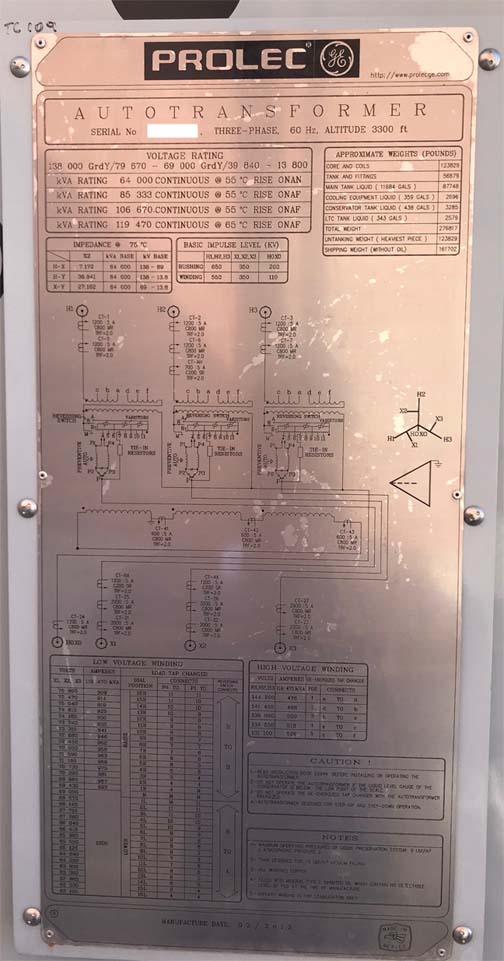

ONE (1) 64/85.333/106.670/119.470 MVA GE PROLEC AUTO TRANSFORMER WITH
LOAD TAP CHANGING, 3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF/ONAF,
55/65 DEGREE RISE, 7.172% IMPEDANCE*, CONSERVATOR, MFG. 2013

HIGH VOLTAGE: 138000 GRDY/79670 BIL: 550 KV
LOW VOLTAGE: 69000 GRDY/39840 BIL: 350 KV
TERTIARY: 13800 DELTA
TAPS: 144900-141450-138000-134550-131100
LV TAPS: 75900 TO 62100 IN 32 STEPS

*IMPEDANCE CHART:
H-X 7.172% 64 MVA BASE 138-69 KV BASE
H-Y 36.941% 64 MVA BASE 138-13.8 KV BASE
X-Y 27.162% 64 MVA BASE 69-13.8 KV BASE

HIGH VOLTAGE CT'S: 6 X 1200:5 MRCT'S, CLASS C800
HIGH VOLTAGE CT: 1 X 700:5 SRCT, CLASS C200
LOW VOLTAGE CT'S: 2 X 1200:5 SRCT, CLASS C200
LOW VOLTAGE CT'S: 6 X 2000:5 MRCT'S, CLASS C800
NEUTRAL CT: 1 X 1200:5 MRCT, CLASS C800

CORE AND COILS: 123829 LBS
TANK AND FITTINGS: 56679 LBS
MAIN TANK LIQUID:(11684 GALS) 87748 LBS
COOLING EQUIP LIQ:(359 GALS) 2696 LBS
CONSERVATOR TANK LIQ:(438 GALS) 3285 LBS
LTC TANK LIQ:(343 GALS) 2579 LBS
TOTAL WEIGHT: 276817 LBS
UNTANKING WEIGHT: 123829 LBS
SHIPPING WEIGHT: 161702 LBS
