3200 Amp, GENERAL ELECTRIC, WPS-32, 480 V., 120 VAC CLOSE/125 VDC TRIP, D/O:1
AIR CIRCUIT BREAKER
Product Number:
041838
Full Product Description

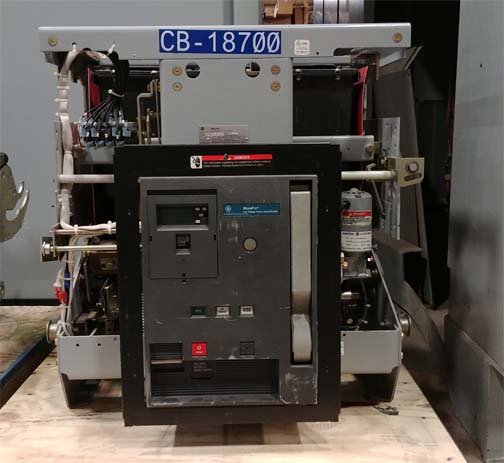

CB-18700:

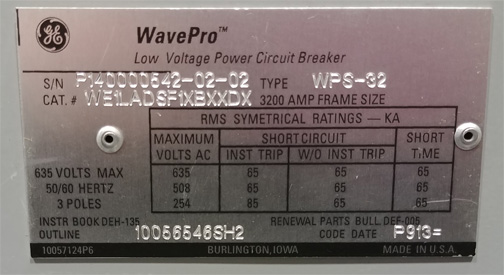

ONE (1) 3200 AMP GENERAL ELECTRIC WAVEPRO LOW VOLTAGE CIRCUIT BREAKER
TYPE WPS-32
635 & 508 VOLT
65 KA TRIP INST. & W/O INST.
65 KA SHORT TIME
254 VOLT
85 KA INST. TRIP
65 KW W/O INST. & SHORT TIME
50/60 HERTZ
3 POLES
CAT. #WE1LADSF1XBXXDX
INST. BOOK - DEH-135
OUTLINE - 10056546SH2
MICRO-VERSA TRIP PLUS TRIP UNIT
3200 AMP RATING PLUG
3200 AMP SENSOR
S/N RMS9D014947
TYPE K332LSGZ2
120 VAC CLOSE
125 VDC TRIP
DRAW-OUT
CONNECTION DIAGRAM - 10057403P1
RENEWAL PARTS BULLETIN DEF-005
S/N P140000542-02-02
