  2. 300 KVA, Pri 4160 D, Sec 208Y/120, WESTINGHOUSE, DEAD FRONT/RADIAL FEED:1

300 KVA, Pri 4160 D, Sec 208Y/120, WESTINGHOUSE, DEAD FRONT/RADIAL FEED:1

https://belyeapower.redstormlabs.com/web/image/product.template/31438/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 041831
    Request Quote

    Full Product Description


    JVT-3718:

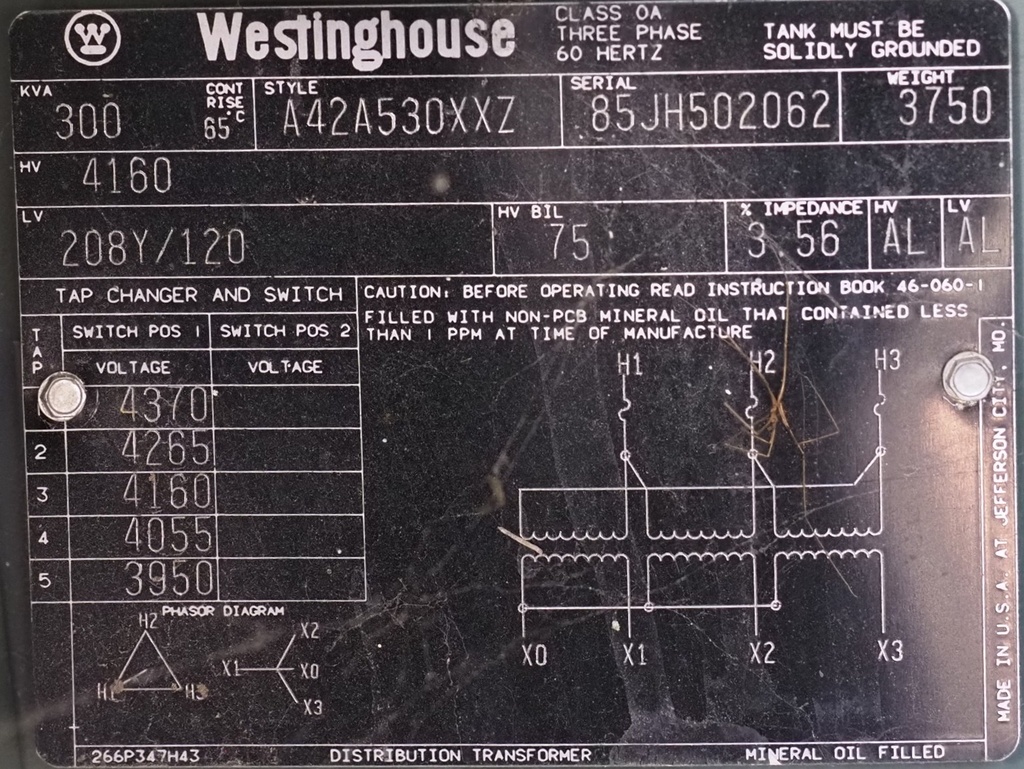

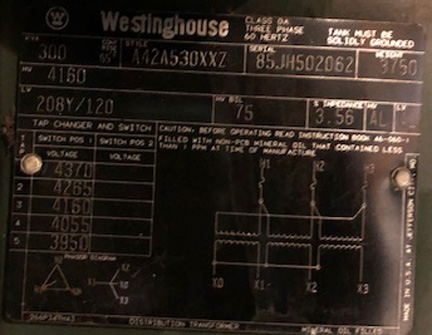

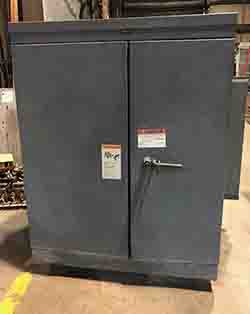

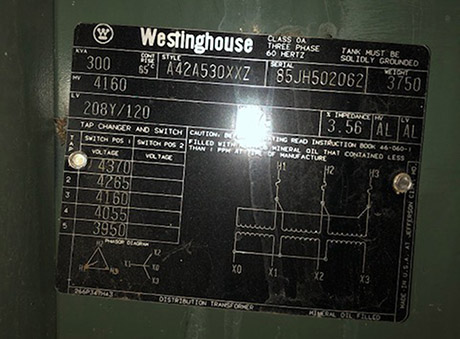

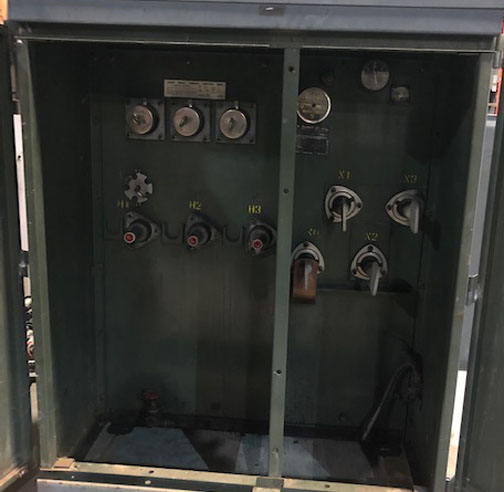

    ONE (1) 300 KVA WESTINGHOUSE COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
    60 HZ, CLASS OA, 65 DEG. C RISE, 3.56% IMPEDANCE, DEAD FRONT, RADIAL
    FEED, ALUMINUM WINDINGS, LIQUID TEMPERATURE GAUGE, VACUUM PRESSURE
    GAUGE, LIQUID LEVEL GAUGE, DRAIN & SAMPLE VALVE

    HIGH VOLTAGE: 4160 DELTA
    LOW VOLTAGE: 208Y/120
    TAPS: 4370-4265-4160-4055-3950

    TOTAL WEIGHT: 3,750 LBS.
    DIMENSIONS: 58 3/8"H X 57 1/2"W X 57 1/2"D
