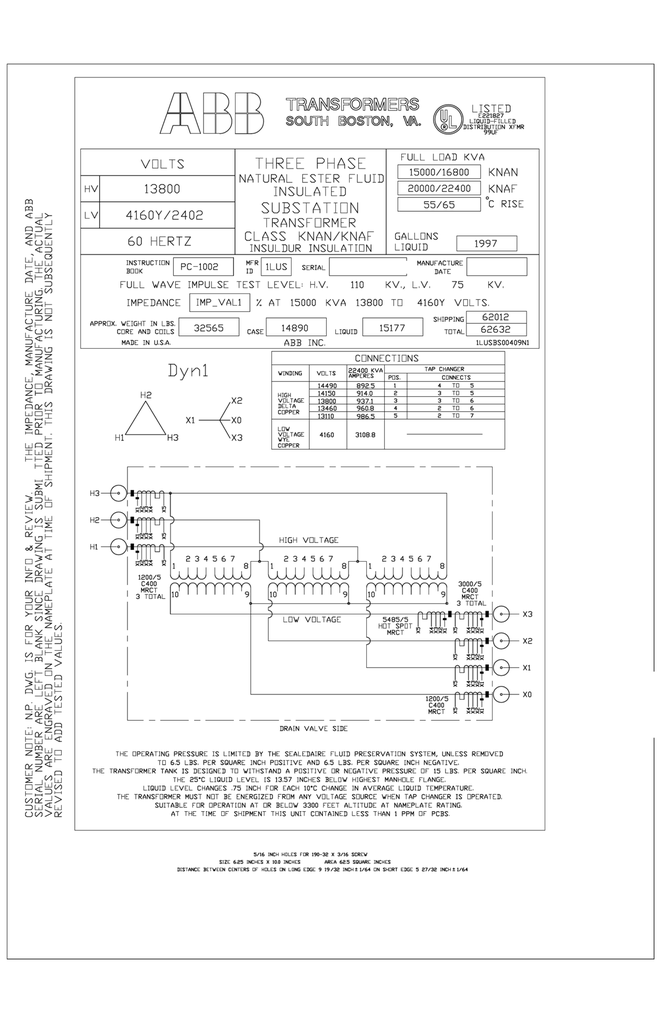

15000/22400 KVA, Pri 13800 D, Sec 4160Y/2402, ABB, FR3, NEW:1

ONE (1) NEW 15000/16800/20000/22400 KVA ABB SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS KNAN/KNAF, 55/65 DEG. C RISE, FR3 FLUID, COPPER
WINDINGS, 3 X 1200:5 HV MRCT'S C400, 3 X 3000:5 LV MRCT'S C400,
1 X 1200:5 NEUTRAL MRCT C400

HIGH VOLTAGE: 13800 DELTA BIL: 110 KV
LOW VOLTAGE: 4160Y/2402 BIL: 75 KV
TAPS: 14490-14150-13800-13460-13110

TOTAL WEIGHT: 62,632 LBS.
CORE & COILS: 32,565 LBS.
TANK & FIT.: 14,890 LBS.
FLUID: 15,177 LBS. (1,997 GALS.)
SHIPPING: 62,012 LBS.
