12000/20000 KVA, Pri 34500 D, Sec 4160Y/2400, WAUKESHA, COPPER, UNUSED:1

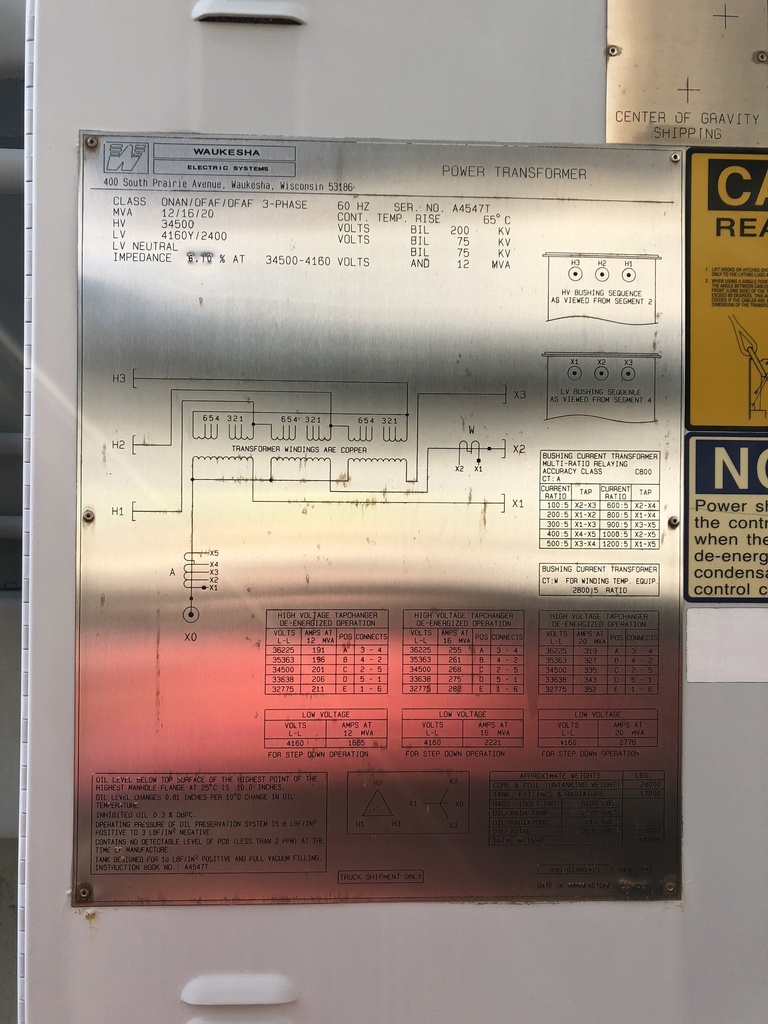

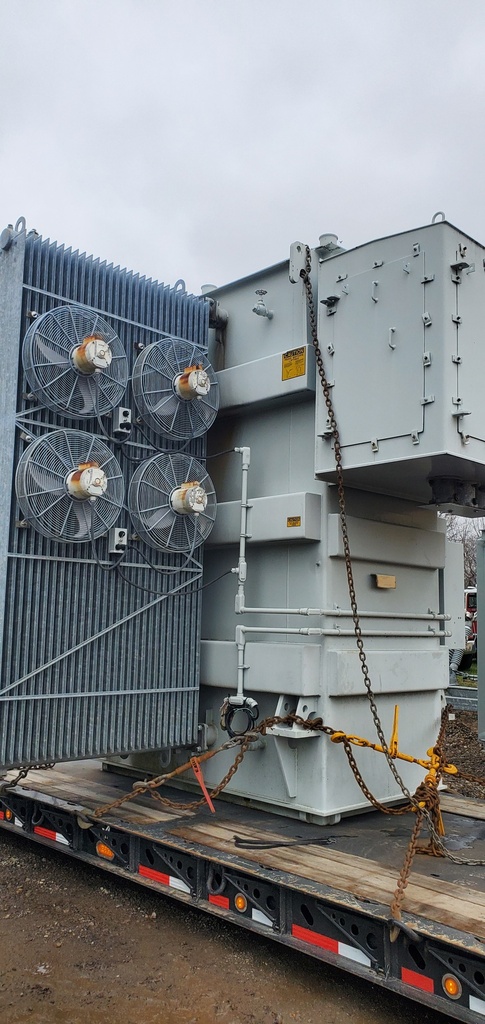

ONE (1) UNUSED 12/16/20 MVA WAUKESHA SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ,
CLASS ONAN/OFAF/OFAF, 65 DEG. C RISE, 6.10% IMPEDANCE, COPPER
WINDINGS, MFG. 2002

HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 36225-35363-34500-33638-32775

TOTAL WEIGHT: 64,800 LBS.
CORE & COILS: 28,000 LBS.
TANK & FIT.: 17,800 LBS.
BOLT ON RADS: 5,100 LBS.
MAIN TANK OIL: 2,220 GALS.
RAD OIL: 210 GALS.
TOTAL OIL: 19,000 LBS.
