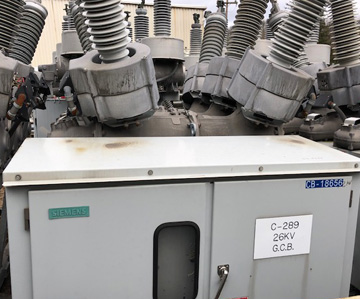

3000 Amp, SIEMENS, No. SPS2-72.5-40-2, 72500 V., 2006, 125 VDC, FA2.20 MECH:1
SF6 CIRCUIT BREAKER
Product Number:
041776
Full Product Description
CB-18656:

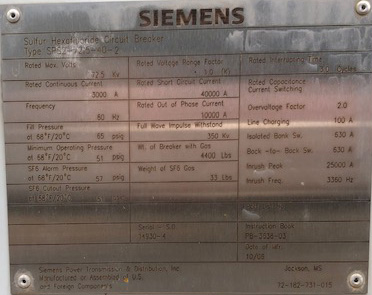

ONE (1) 3000 Amp Siemens SF6 Spring Charged Circuit Breaker
Type SPS2-72.5-40-2
72.5 KV Max. volt
1.0 Range Factor K
3 Cycle Interrupt
40 KA Short Circuit Current
60 HZ
350 KV BIL
10 KA Out of Phase
6 x 2000:5 Multi Ratio CT's, C800 Class
FA2.20 Spring Charged Operating Mechanism
125 VDC Close & Trip
120 VAC Motor
Fill 65 PSIG
Min. Operating 51 PSIG
Alarm 57 PSIG
Cutout Pressure 51 PSIG
Weight with Gas - 4400 lbs.
Weight without Gas - 4367 lbs.
Breaker Gas - 33 lbs.
Instruction Manual PB-3638-03
Control Diagram 72-480-810-483
EXTRA CT'S AVAILABLE AT ADDITIONAL COST
