10000/14000 KVA, Pri 13200 D, Sec 2400 D, 2008, GE PROLEC, COPPER:1

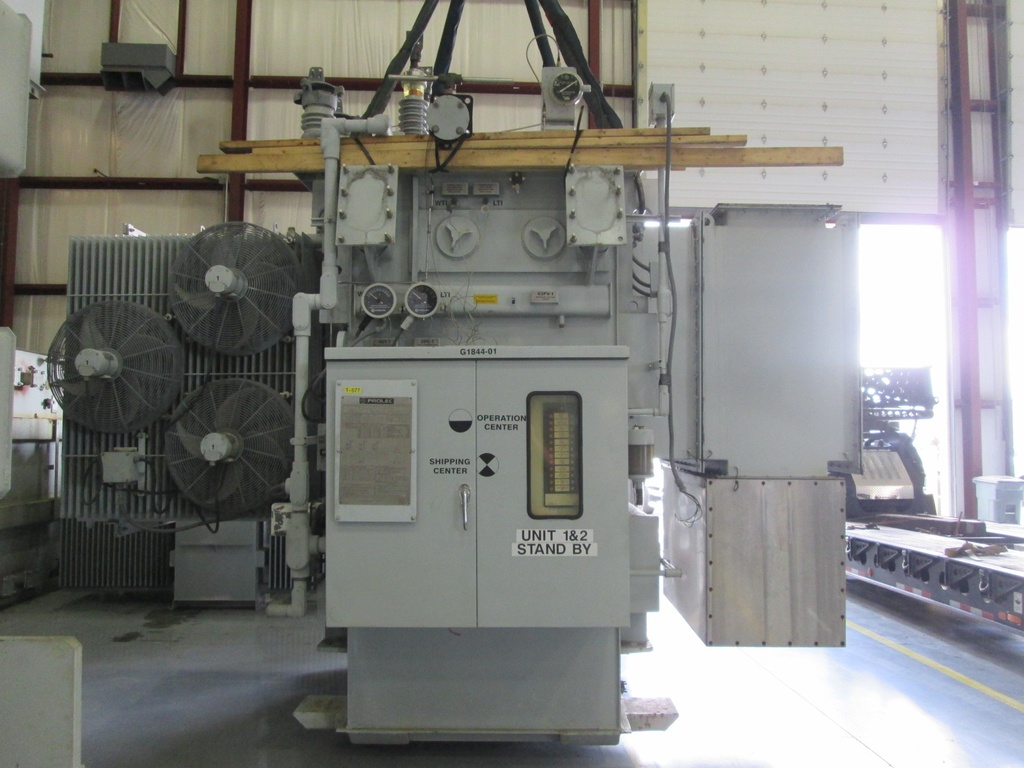

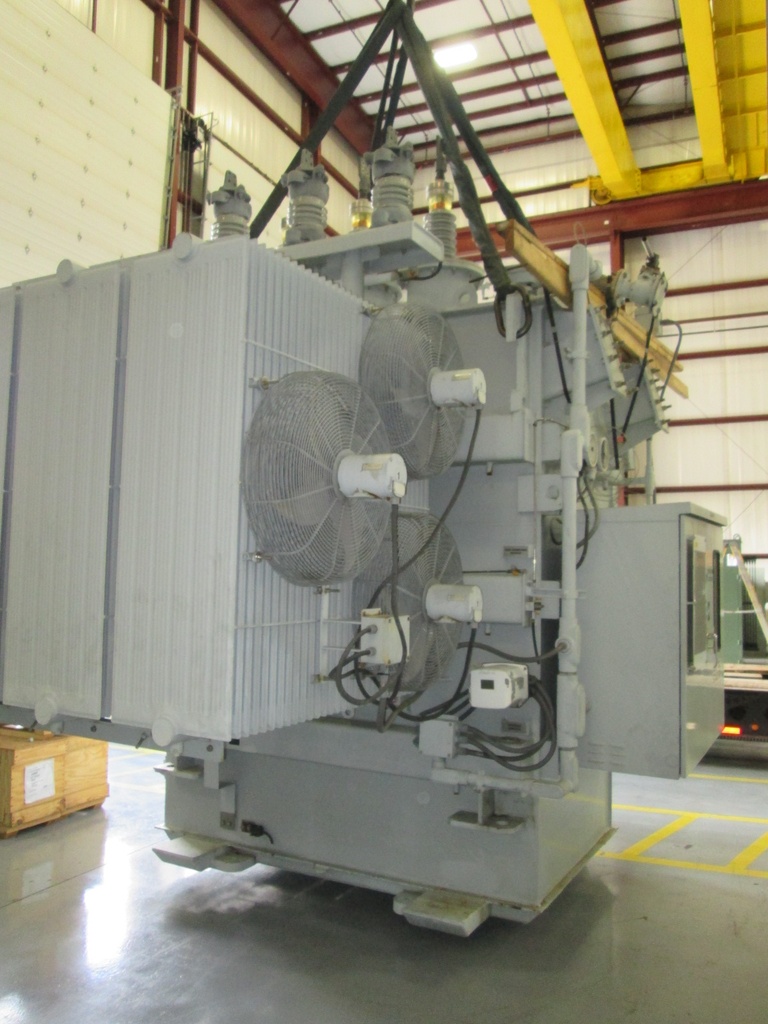

ONE (1) 10/12.5/14 MVA GE PROLEC SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS ONAN/ONAF/ONAF, 55/65 DEGREE C RISE, 5.5% IMPEDANCE, COPPER
WINDINGS, 3 X 1000:5 HV MRCT'S, 3 X 4000:5 HV MRCT'S, 1 X 4000"5 LV
MRCT, WINDING TEMPERATURE INDICATOR, LIQUID TEMPERATURE INDICATOR,
PRESSURE RELIEF DEVICE, RAPID PRESSURE RELAY, PRESSURE-VACUUM GAUGE,
FILTER PRESS VALVE, DRAIN & SAMPLE VALVE, CONSERVATOR, HV SURGE
ARRESTERS AND SUPPORT, TOP X TOP BUSHINGS, MFG. 2008

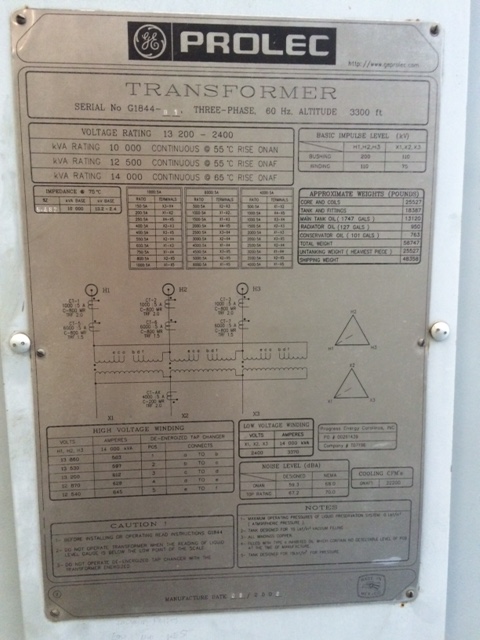

HIGH VOLTAGE: 13200 DELTA BIL: 200 KV
LOW VOLTAGE: 2400 DELTA BIL: 110 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 58,747 LBS.
CORE & COILS: 25,527 LBS.
TANK & FIT.: 18,387 LBS.
MAIN TANK OIL: 13,120 LBS. (1,747 GALS.)
RADIATOR OIL: 950 LBS. (127 GALS.)
CONSERVATOR OIL: 763 LBS. (101 GALS.)
SHIPPING: 48,358 LBS.
DIMENSIONS: 177.23"H X 179.33"W X 163.79"L
SHIPPING: 151.14"H X 124.64"W X 131.00"L
