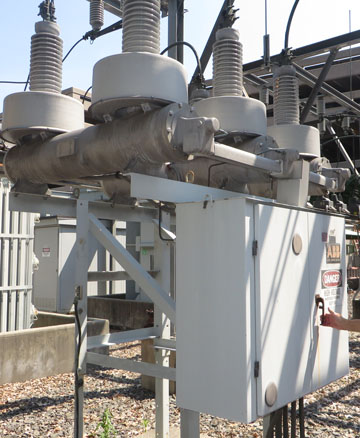

1200 Amp, ABB, No. 38PM40-12B, 38000 V., 1991, 48 VDC CLOSE/TRIP/MOTOR, FSA2
SF6 CIRCUIT BREAKER
Product Number:
041739
Full Product Description
CB-18661:
ONE (1) 1200 AMP ABB SF6 CIRCUIT BREAKER

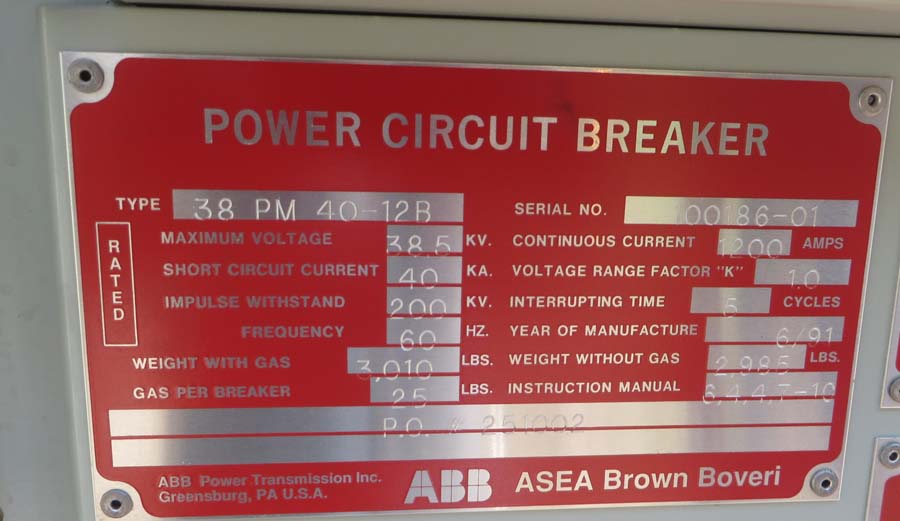

TYPE 38PM40-12B
38.5 KV MAX. VOLTAGE
40 KA SHORT CIRCUIT
200 KV BIL
60 HERTZ
3 PHASE
1.0 VOLTAGE RANGE FACTOR K
5 CYCLE INTERRUPT
2,985 LBS. WITHOUT GAS
3,010 LBS. WITH GAS
25 LBS. OF GAS PER BREAKER
6.4.4.7-10 INSTRUCTION MANUAL

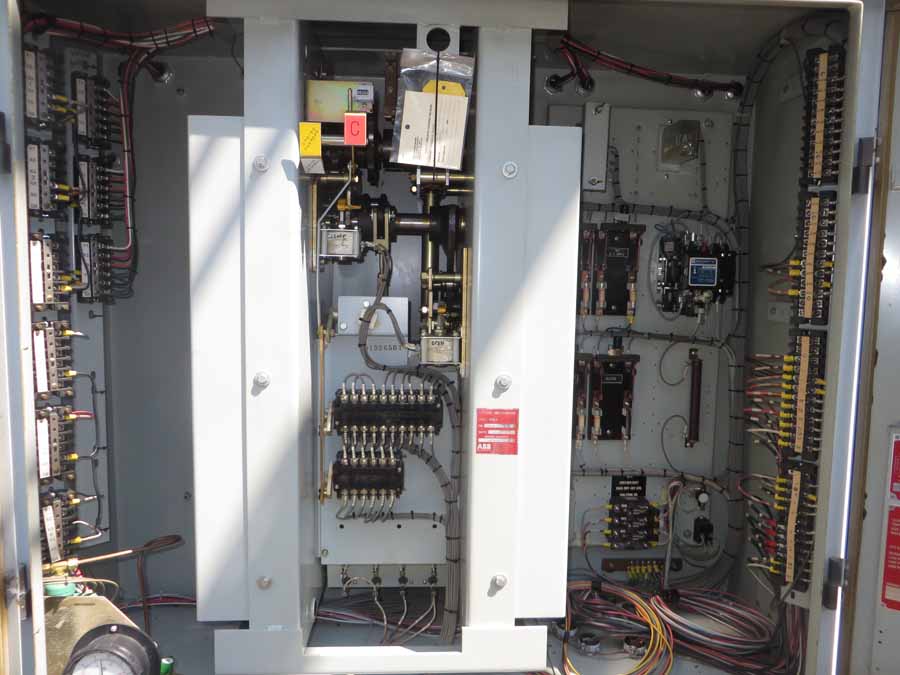

FSA2 OPERATING MECHANISM
48 VDC CLOSE & TRIP
48 VDC MOTOR
65 PSIG NORMAL OPERATING PRESSURE
50 PSIG MINIMAL OPERATING PRESSURE
53 LOW PRESSURE ALARM
50 LOW PRESSURE OPERATION BLOCK
WIRING DIAGRAM 995D601
6 X 1200:5 MRCT'S, C800
ADDITIONAL CT'S AVAILABLE AT EXTRA COST
