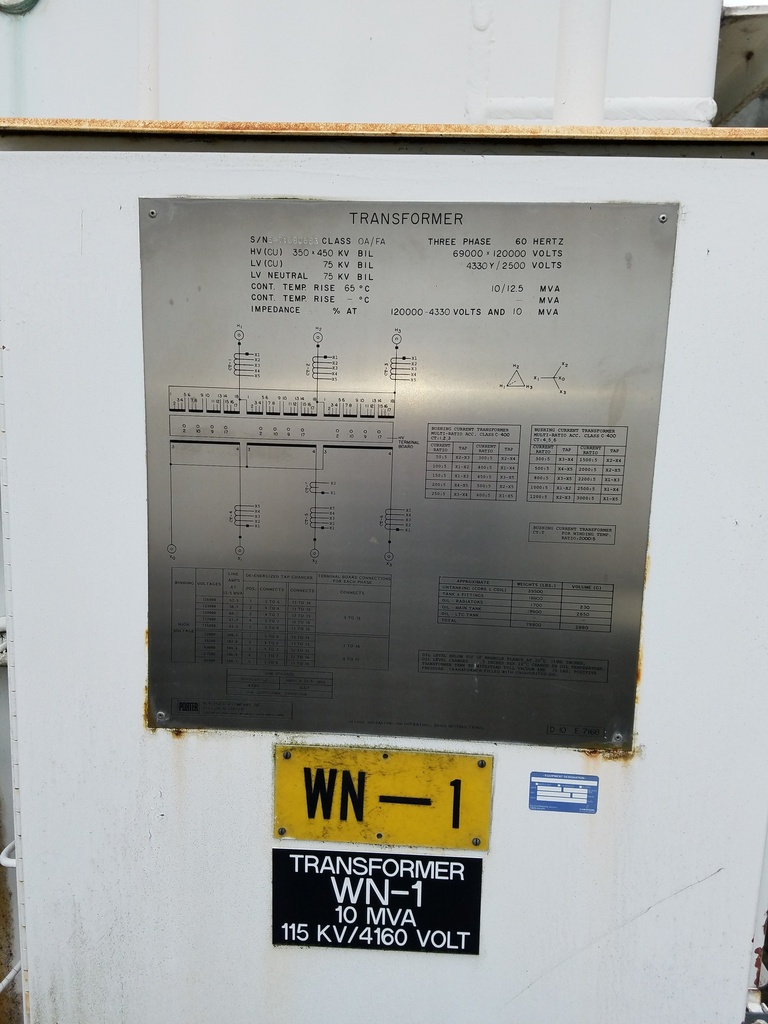

10000/12500 KVA, Pri 69000 D X 120000 D, Sec 4330 Y/2500, HK PORTER:1

ONE (1) 10/12.5 MVA HK PORTER SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
OA/FA, 65 DEG. C RISE, 9.6% IMPEDANCE AT 120 KV, COPPER WINDINGS,
3 X 600:5 HV MRCT'S C-400, 3 X 3000:5 LV MRCT'S C-400

HIGH VOLTAGE: 120000 DELTA BIL: 450 KV
HIGH VOLTAGE: 69000 DELTA BIL: 350 KV
LOW VOLTAGE: 4330Y/2500 BIL: 75 KV
TAPS: 126000-123000-120000-117000-114000
TAPS: 72000-70500-69000-67500-64000

TOTAL WEIGHT: 79,900 LBS.
CORE & COILS: 39.500 LBS.
TANK & FIT.: 18,800 LBS.
RADIATOR OIL: 1,700 LBS. (230 GALS.)
MAIN TANK OIL: 19,900 LBS. (2,650 GALS.)
