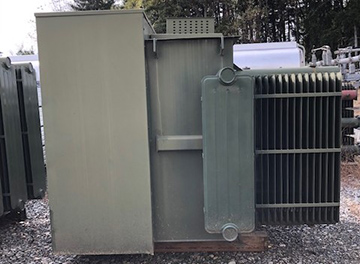

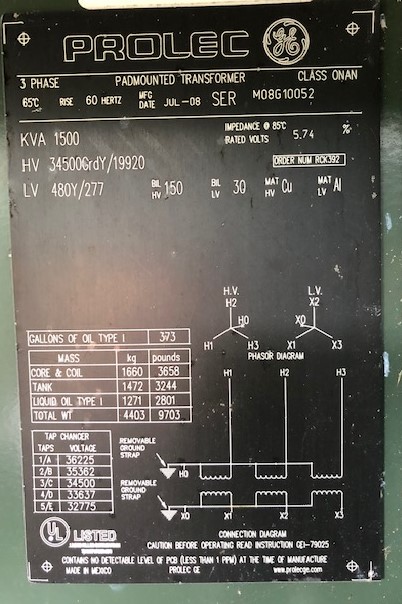

1500 KVA, Pri 34500GRDY/19920, Sec 480Y/277, 2008, GE PROLEC, LIVE/RADIAL
PADMOUNT TRANSFORMER
Product Number:
041695
Full Product Description

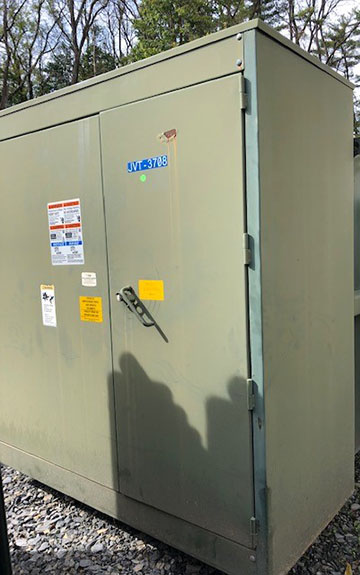

JVT-3708
ONE (1) 1500 KVA GE PROLEC PADMOUNT TRANSFORMER, 3 PHASE, 65 DEG.,
CLASS ONAN, 5.74% IMPEDANCE, 60 HZ, HV COPPER, LV ALUMINUM,
REMOVABLE GROUND STRAP, LIVE FRONT, RADIAL FEED, TEMP. GAUGE,
PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE, UL LISTED,
MFG. 2008, SN: M08G10052
HV - 150 KVBIL
LV - 30 KVBIL

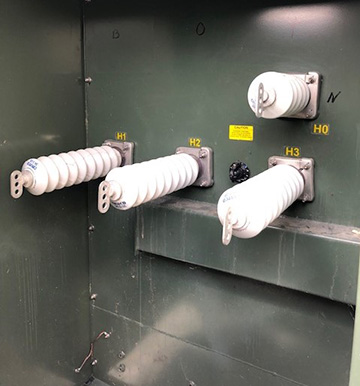

HV: 34500GRDY/19920

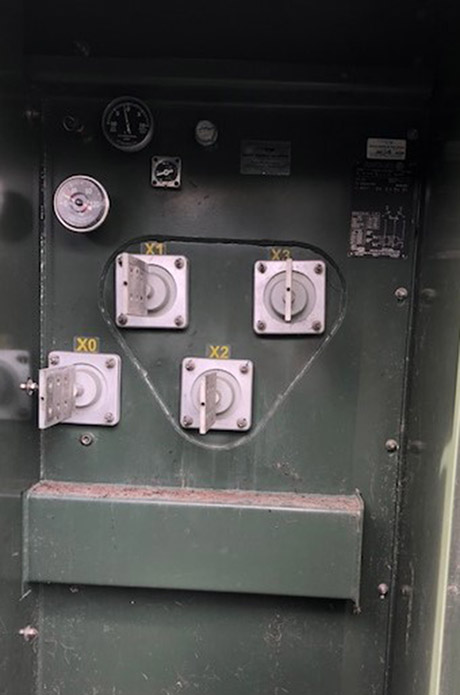

LV: 480Y/277
TAPS: 36225-35362-34500-33637-32775
DIMENSIONS: 76"H X 74.25"W X 93"H
CORE & COILS: 3,885 LBS.
TANK & FITTINGS: 3,061 LBS.
OIL: 2,829
GALLONS OF OIL: 377
TOTAL WEIGHT: 9,775 LBS
