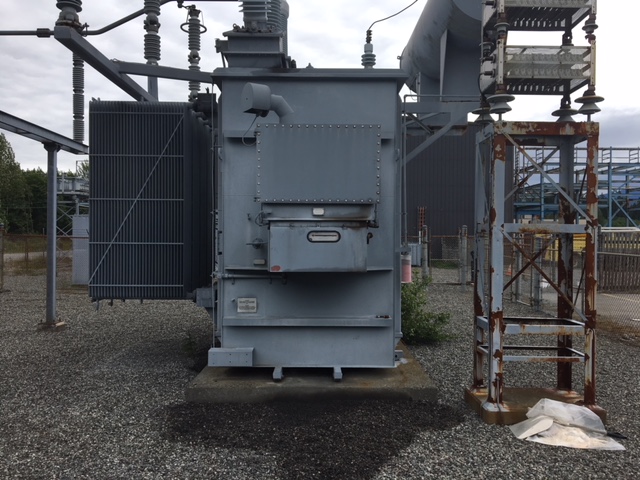

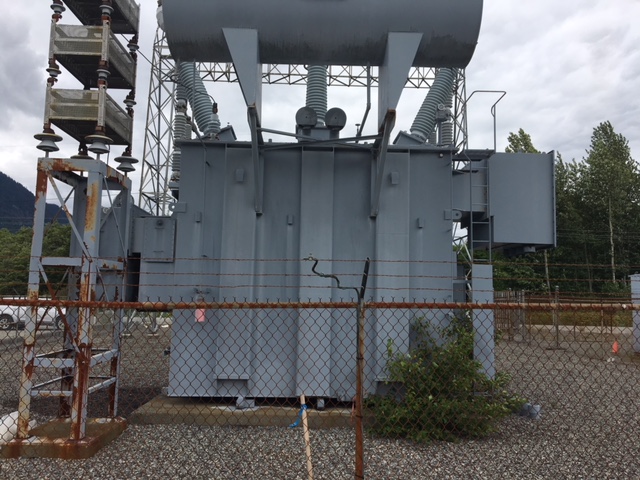

25000/55000 KVA, Pri 287000 D, Sec 24840Y/14400, FEDERAL PIONEER, LTC, COPPER:1

ONE (1) 25/33/41/44/55 MVA FEDERAL PIONEER LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, 55/65 DEG. C RISE, CLASS ONAN/ONAF/ONAF, 6.75%
IMPEDANCE, 6 X 200:5 HV CT'S C400, 3 X 4000:5 LV CT'S C400, 3 X 1000:5
LV CT'S C400, GAS DETECTOR

HIGH VOLTAGE: 287000 DELTA BIL: 1050 KV
LOW VOLTAGE:: 25000Y/14400 BIL: 125 KV
TAPS: 301350-294175-287000-279825-272650
LV TAPS: 22446 TO 27434 IN 32 STEPS

TOTAL WEIGHT: 107,870 KGS
CORE & COILS: 38,430 KGS
TANK & FIT.: 28,060 KGS
MAIN TANK OIL: 40,770 KGS (47,683 LITRES)
LTC OIL: 610 KGS (714 LITRES)
