  2. 24000/44800 KVA, Pri 115000 D, Sec 13200Y/7560, GENERAL ELECTRIC:1

24000/44800 KVA, Pri 115000 D, Sec 13200Y/7560, GENERAL ELECTRIC:1

https://belyeapower.redstormlabs.com/web/image/product.template/31214/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 041607
    Request Quote

    Full Product Description

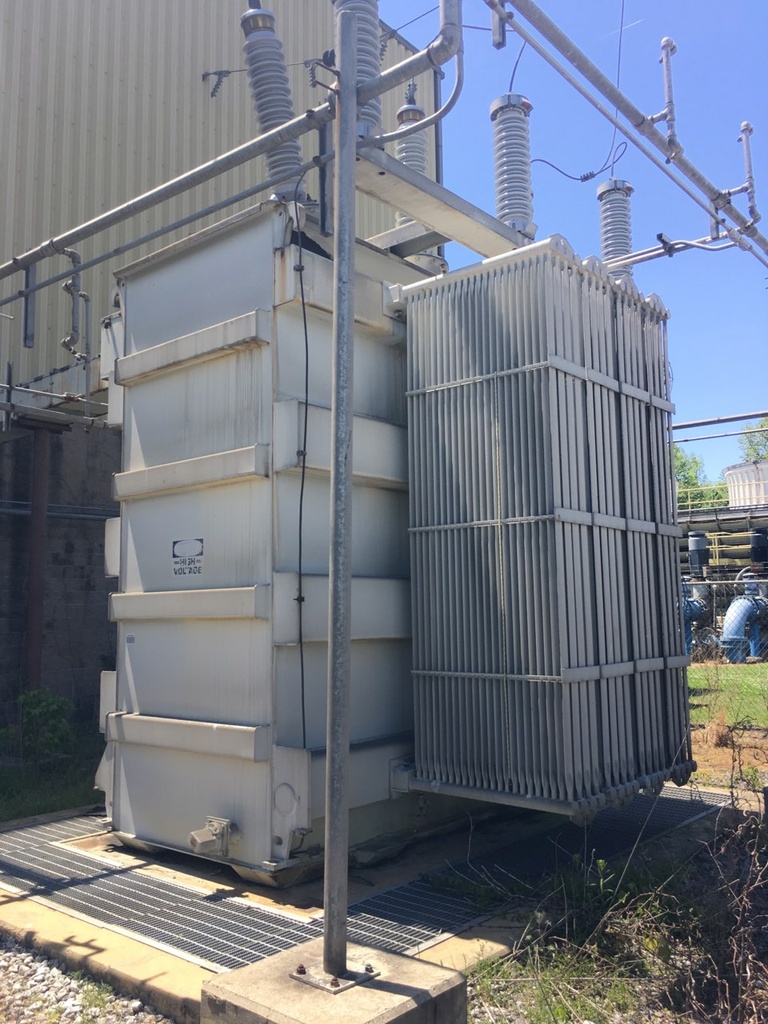

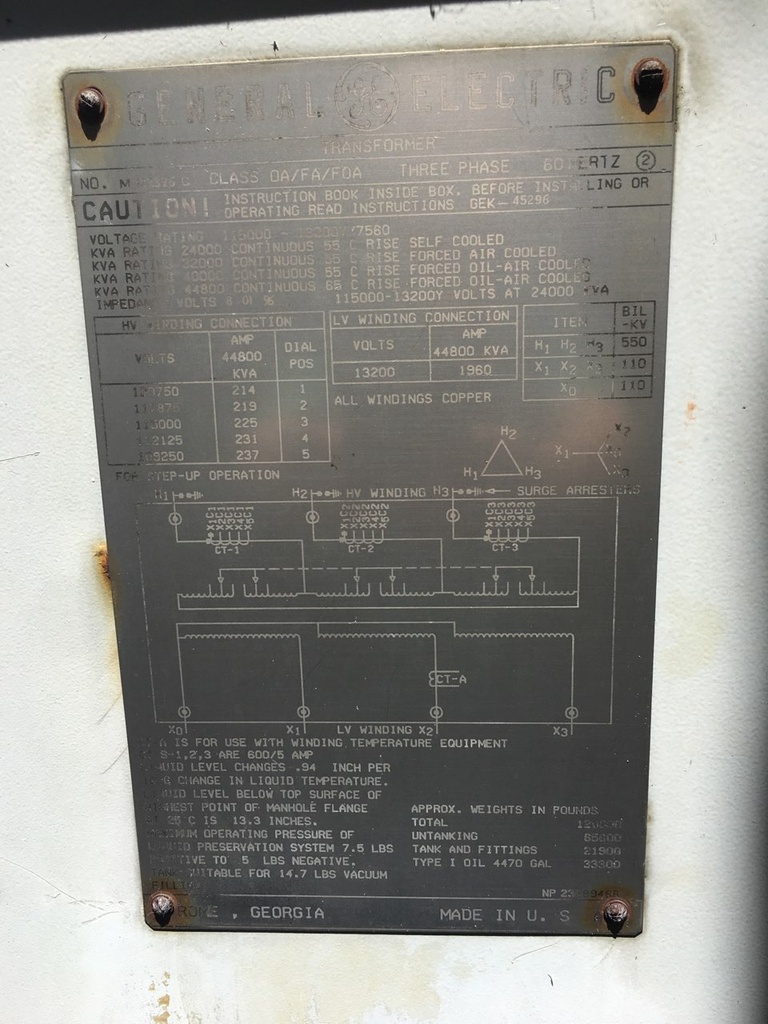

    ONE (1) 24/32/40/44.8 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
    60 HERTZ, CLASS OA/FA/FOA, 55/65 DEGREE C RISE, 8.01% IMPEDANCE,
    COPPER WINDINGS

    HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
    LOW VOLTAGE: 13200Y/7560 BIL: 110 KV
    TAPS: 120750-117875-115000-112125-109250

    TOTAL WEIGHT: 120,800 LBS.
    CORE & COILS: 65,600 LBS.
    TANK & FIT.: 21,900 LBS.
    OIL: 33,300 LBS. (4,470 GALS.)
