225 KVA, Pri 2400 D, Sec 240 D, 1983, GE PADMOUNT, LF/RF
PADMOUNT TRNASFORMER
Product Number:
041597
Full Product Description
T-5789

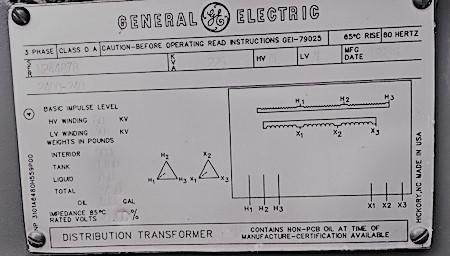

ONE (1) 225 KVA GE PADMOUNT TRANSFORMER, 3 PHASE, 65 DEG., OA, 4.0% IMP.,
60 HZ, LIVE FRONT/RADIAL FEED, ALUMINUM WINDINGS, DRAIN & SAMPLE
VALVE, INST. BOOK GE179025, SN N244878
PRIMARY: 2400 DELTA HV: BIL 60 KV
SECONDARY: 240 DELTA LV: BIL 30 KV
TAPS: 2520-2460-2400-2340-2280
TOTAL WEIGHTS: 2,750 LBS.
CORE & COILS: 900 LBS.
TANK & FITTINGS: 1,100 LBS.
GALLONS: 750 LBS. (GAL. 100)
