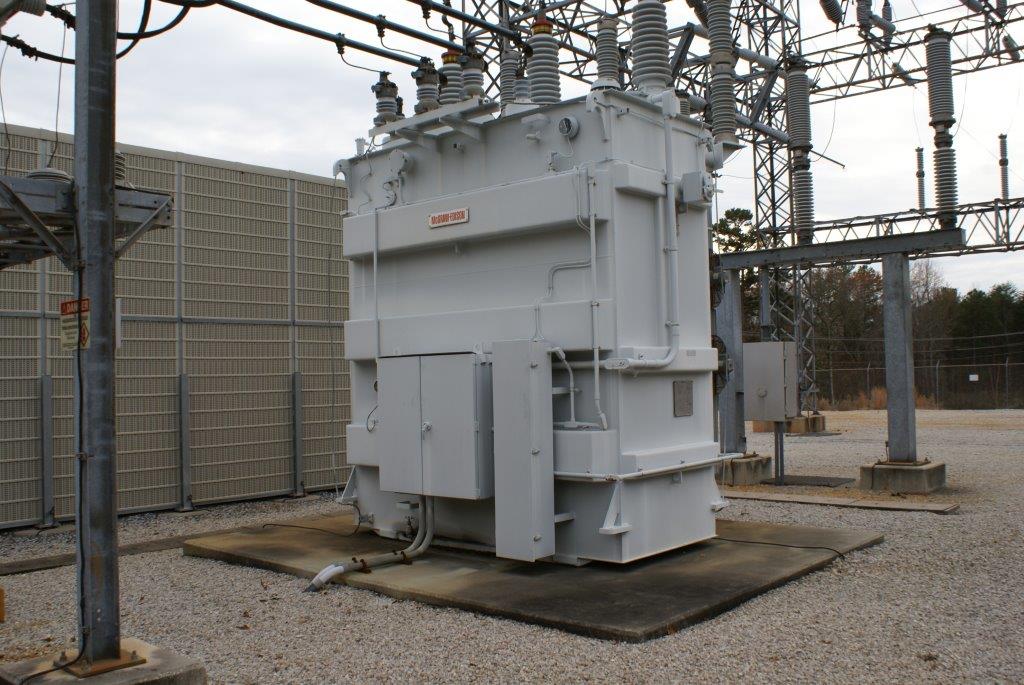

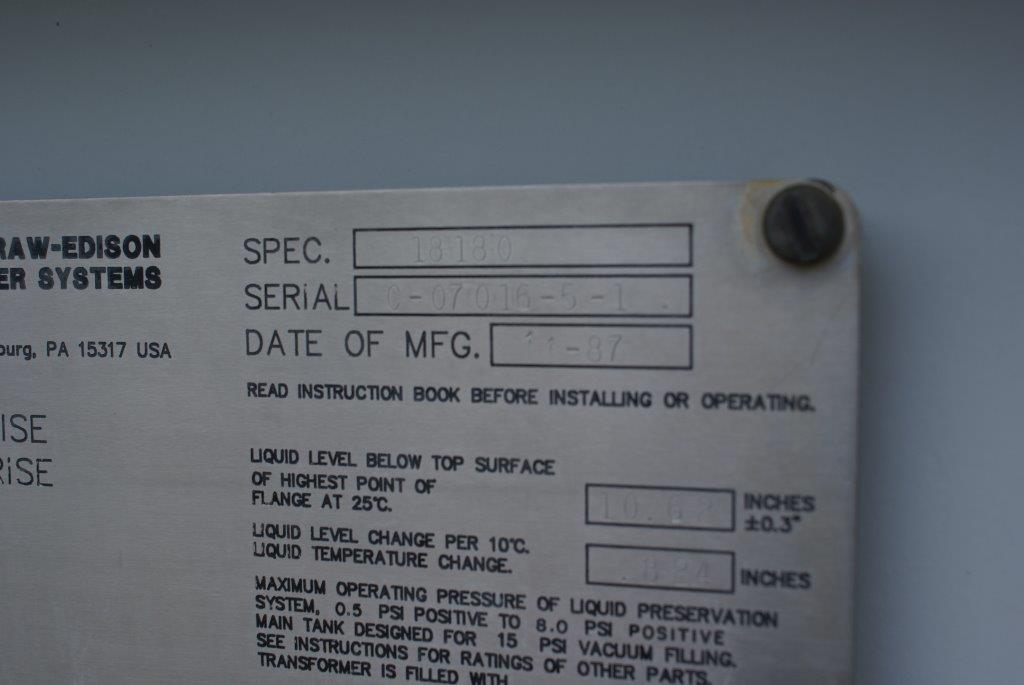

18000/33600 KVA, Pri 100000 D, Sec 13200Y/7621, 1987, MCGRAW-EDISON

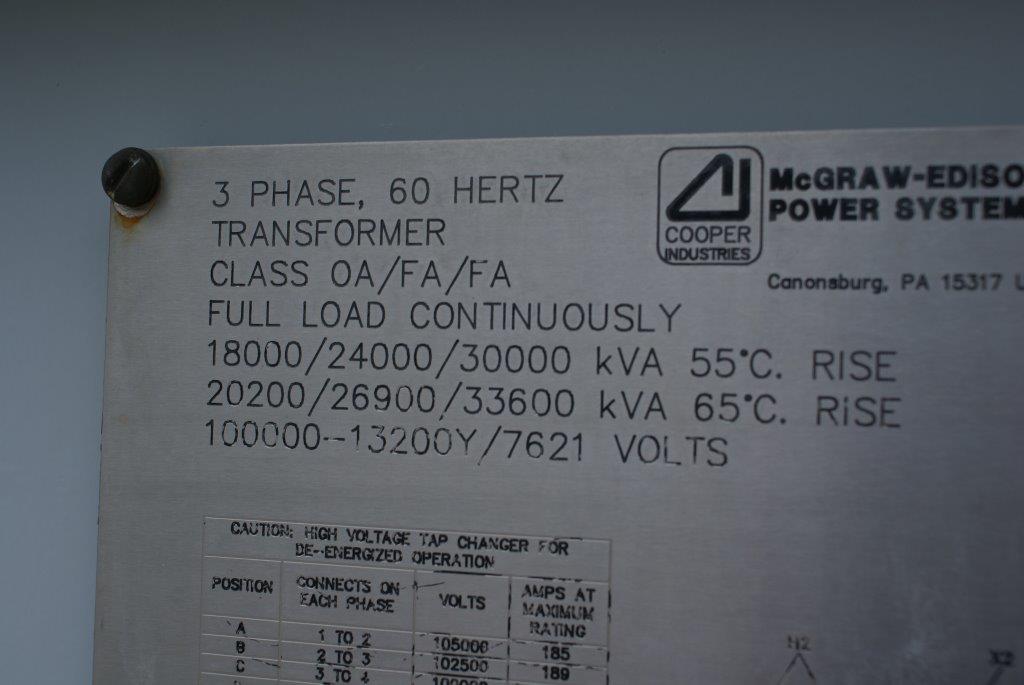

ONE (1) 18000/20200/24000/26900/30000/33600 KVA MCGRAW-EDISON SUBSTATION
TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEG. C RISE,
8.0% IMPEDANCE, COPPER WINDINGS, TOP X TOP BUSHINGS

HIGH VOLTAGE: 100000 DELTA BIL: 450 KV
LOW VOLTAGE: 13200Y/7621 BIL: 110 KV
TAPS: 105000-102500-100000-97500-95000

TOTAL WEIGHT: 110,100 LBS.
CORE & COILS: 60,650 LBS.
TANK & FIT.: 21,650 LBS.
FLUID: 27,800 LBS. (3,704 GALS.)
