300 KVA, Pri 4160 D, Sec 208 Y, FEDERAL PACIFIC, INDOOR ENCLOSURE:1
DRY TYPE TRANSFORMER
Product Number:
041564
Full Product Description
T-5784:

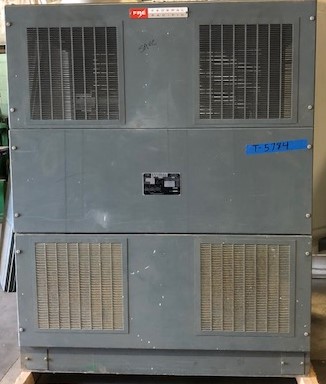

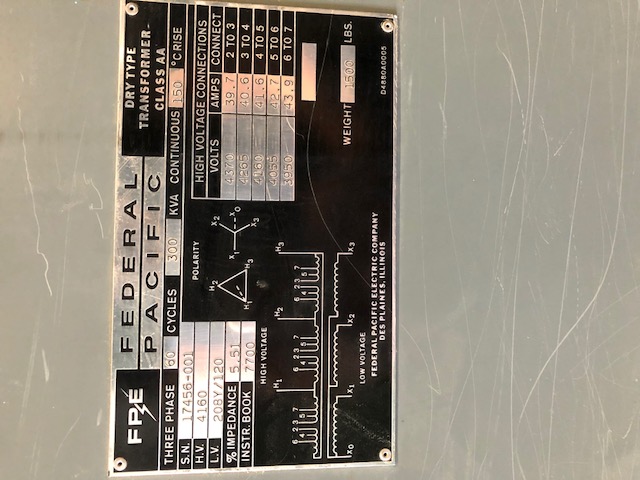

ONE (1) 300 KVA FEDERAL PACIFIC INDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS AA, 150 DEG. C, 5.51% IMP., SN 17456-001
HIGH VOLTAGE: 4160 DELTA
LOW VOLTAGE: 208Y/120
TAPS: 4370-4265-4160-4055-3950
TOTAL WEIGHT: 1,500 LBS.
ENCLOSURE DIMENSIONS: 75.5"H X 60" W X 48" D

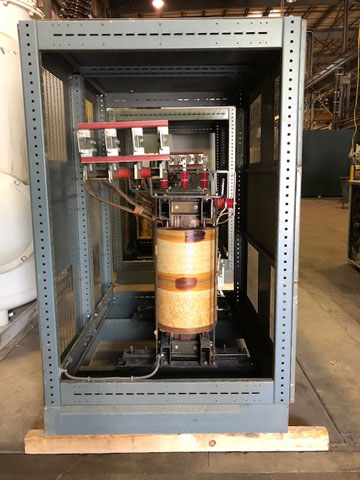

CORE & COIL DIMENSIONS: 52.25"H X 45.25" W X 33.25" D
ONE (1) 300 KVA FEDERAL PACIFIC INDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS AA, 150 DEG. C, 5.51% IMP., SN 17456-001
HIGH VOLTAGE: 4160 DELTA
LOW VOLTAGE: 208Y/120
TAPS: 4370-4265-4160-4055-3950
TOTAL WEIGHT: 1,500 LBS.
ENCLOSURE DIMENSIONS: 75.5"H X 60" W X 48" D
CORE & COIL DIMENSIONS: 52.25"H X 45.25" W X 33.25" D
