3000 Amp, SIEMENS, SPS2-72.5-40-2, 72.5 KV, 2009,FA2.20 SPRING CHARGED OP. MECH.

CB-18585

ONE (1) 3000 Amp Siemens SF6 Circuit Breaker
Type SPS2-72.5-40-2
72.5 KV Max. Volt.
40 KA Short Circuit Current
60 HZ
350 KV Impulse
3 Cycle Interrupt
10 KA Out of Phase
Voltage Range Factor "K" - 1.0
12 x 2000:5 Multi Ratio CT's, C800 Class

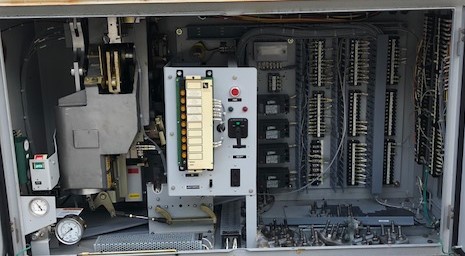

FA2.20 Spring Charged Operating Mechanism
125 VDC C & T
120 VAC Motor
Fill 65 PSIG
Min. Operating 51 PSIG
Alarm 57 PSIG
Cutout Pressure 51 PSIG
Weight with Gas - 4400 lbs.
Weight without Gas - 4367 lbs.
Breaker Gas - 33 lbs.
Instruction Manual - PB 3638-03
Control Diagram 72-480-975-485
