300 KVA, Pri 480 D, Sec 120 D, MGM INDOOR DRY TYPE TRANSFORMER
DRY TYPE TRANSFORMER
Product Number:
041537
Full Product Description
STOCK T-5783
ONE (1) 300 KVA MGM INDOOR/OUTDOOR DRY TYPE TRANSFORMER, UL LISTED
PRI. 480 D
SEC. 120 D
TAPS: 504-492-480-468-546-444-432
TYPE: HT
3-PHASE
60 HERTZ
300KVA
CLASS: AA
RISE: 150 DEG. C
% IMP: 5.0
S/N 9604-300D-001-4

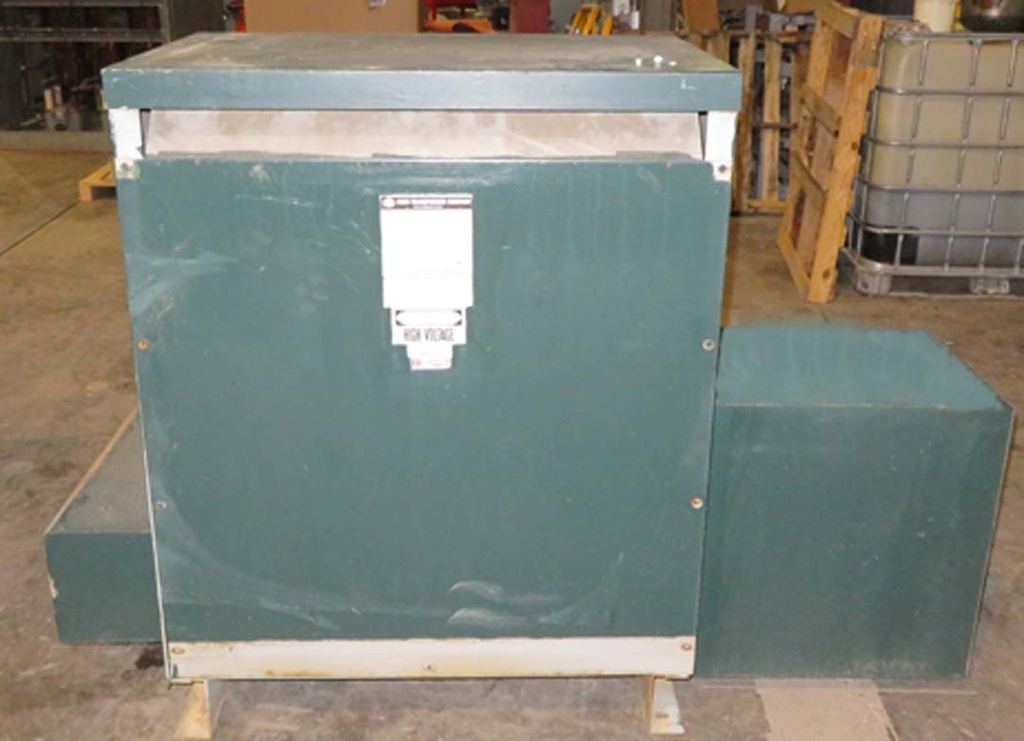

FOOTPRINT DIMENSIONS: 51.5"H X 40.5"W X 26.5"D

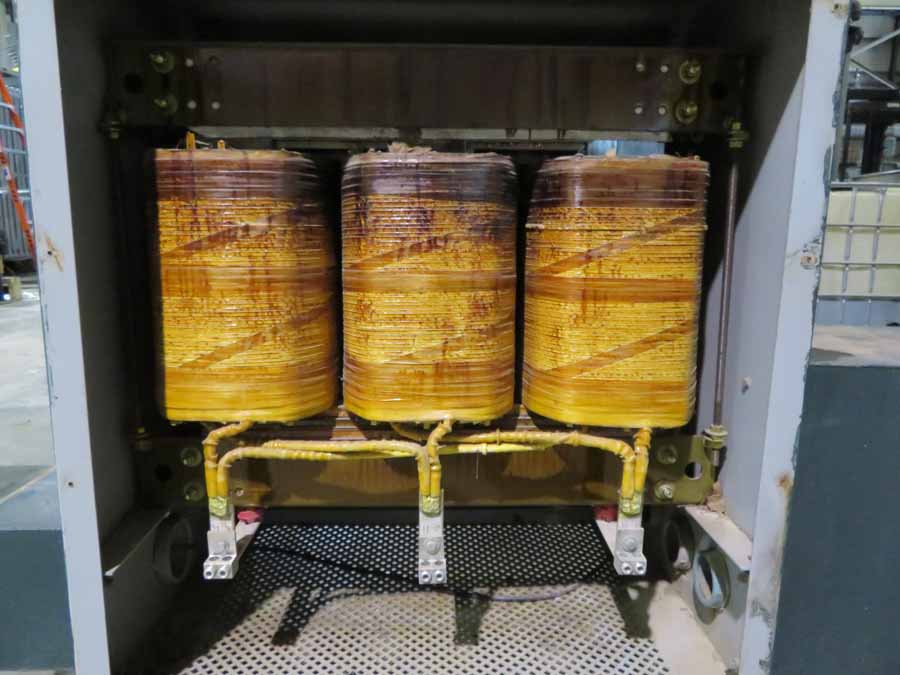

CORE/COIL DIMENSIONS: 32"H X 39"W X 18"D
TOTAL WEIGHT: 1600 LBS
