1000 KVA, Pri 33000 Y, Sec 480 Y, Live Front/Radial Feed

STOCK T-5782

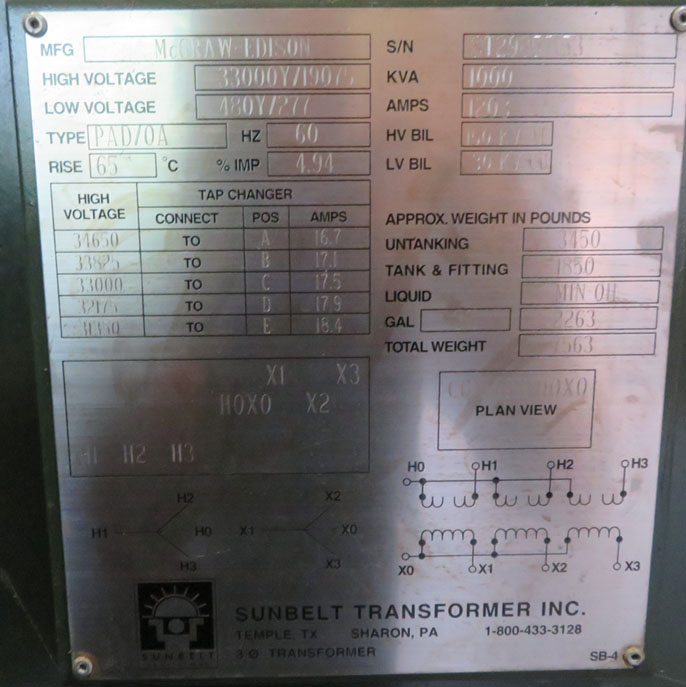

ONE (1) 1000 KVA MACGRAW-EDISON, COMPARTMENTALIZED PADMOUNT TRANSFORMER
PRI. 33000Y- BIL 150KV-AL
SEC. 480Y/277- BIL 30KV-CU
TAPS: 34650-33825-33000-32175-31350

3-PHASE
60 HERTZ
1000KVA
CLASS: OA
RISE: 65 DEG. C
% IMP: 4.94
LIVE FRONT
RADIAL FEED
LIQUID LEVEL/ TEMP. GAUGE
S/N ST29857153

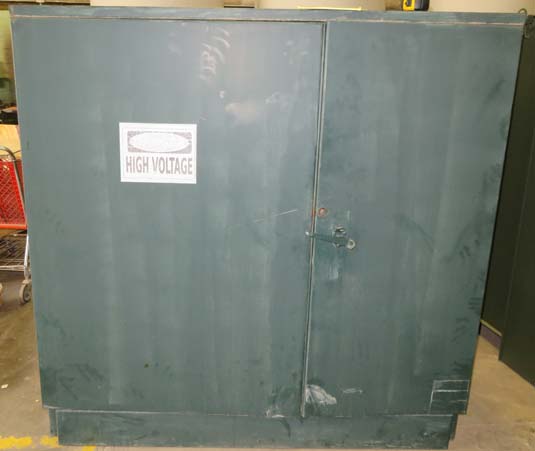

FOOTPRINT DIMENSIONS: 70"H X 70.5"W X 81"D

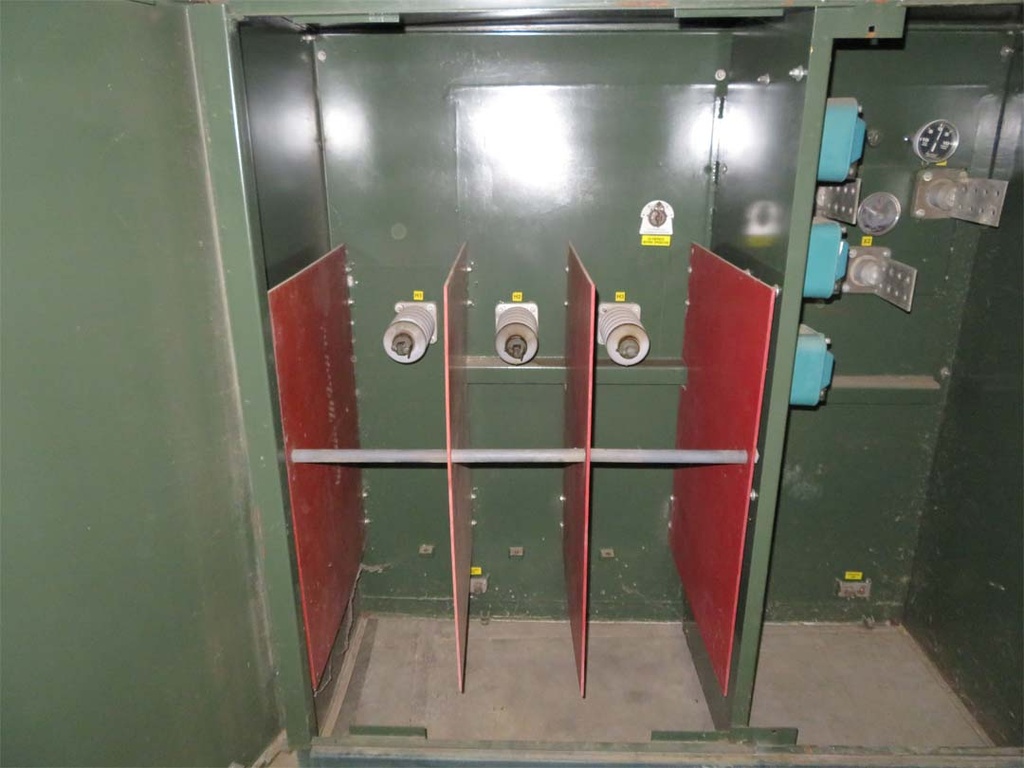

HV COMPARTMENT DIMENSIONS: 70"H X 41.5"W X 27.5"D

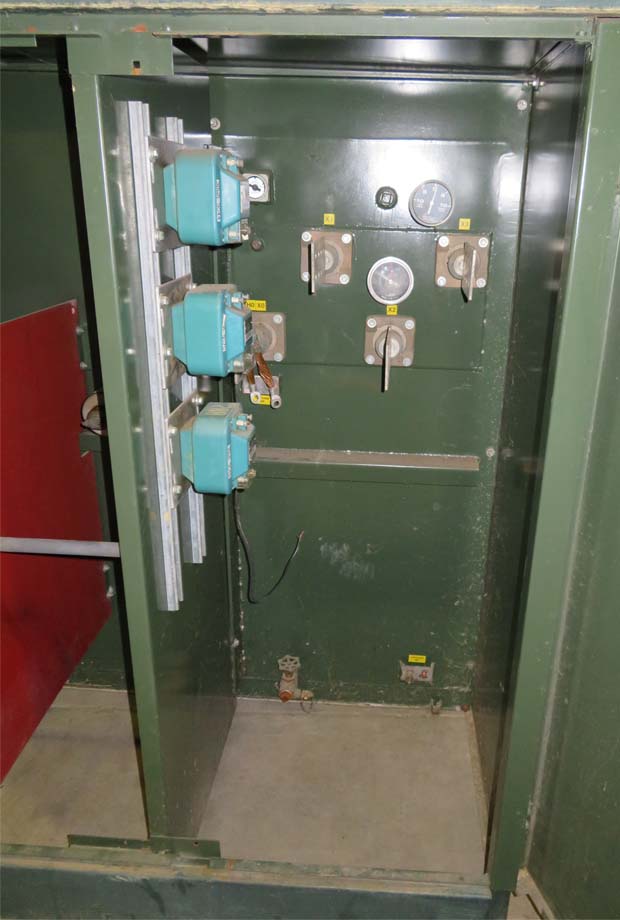

LV COMPARTMENT DIMENSIONS: 70"H X 28.5"W X 27.5:D
TOTAL WEIGHT: 7563LBS
