  2. 2000 Amp, CUTLER-HAMMER, 50 VCP-W 250, 4760 V., 2004, 125 VDC

2000 Amp, CUTLER-HAMMER, 50 VCP-W 250, 4760 V., 2004, 125 VDC

https://belyeapower.redstormlabs.com/web/image/product.template/31122/image_1920?unique=b3949b2

VACUUM BREAKER

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 041515
    Request Quote

    Full Product Description

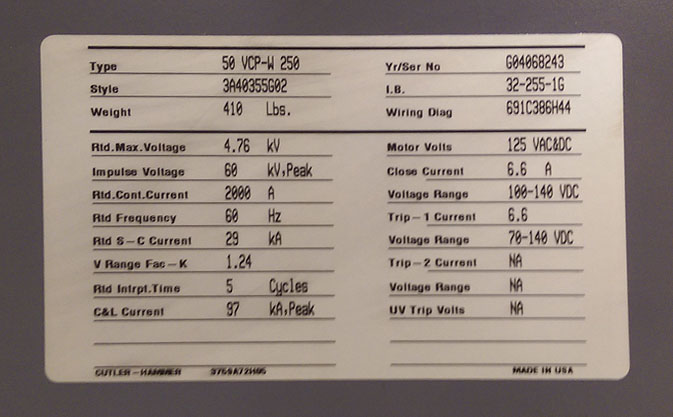

    CB-18464 & A
    ONE (1) 2000 AMP CUTLER-HAMMER VACUUM CIRCUIT BREAKER

    TYPE 50 VCP-W 250
    STYLE 3A40355G02
    4.76 KV MAX
    60 HERTZ
    60 KV BIL IMPULSE VOLTAGE
    5 CYCLE INTERRUPT
    29 KA SHORT CIRCUIT
    1.24 VOLTAGE K FACTOR
    97 KA CLOSE & LATCH
    125 VDC CLOSE & TRIP
    125 VAC/VDC MOTOR
    INST. BOOK 32-255-1G
    WIRING DIAGRAM: 691C386H44
