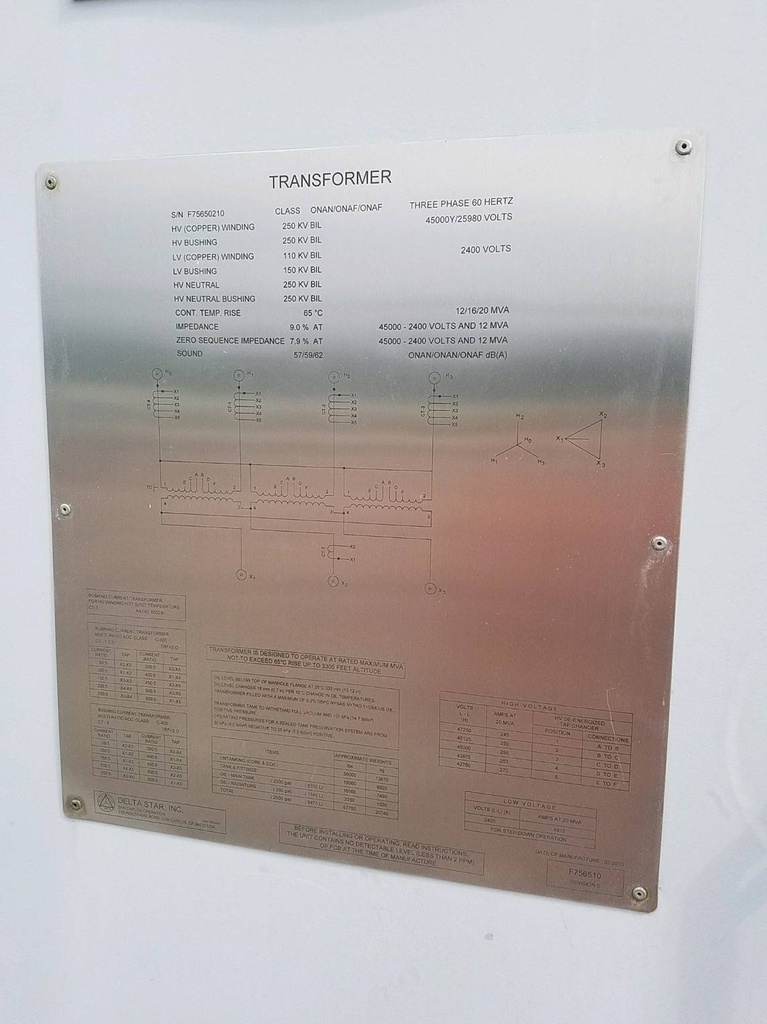

12000/20000 KVA, Pri 45000Y/25980, Sec 2400 D, DELTA STAR, COPPER:1

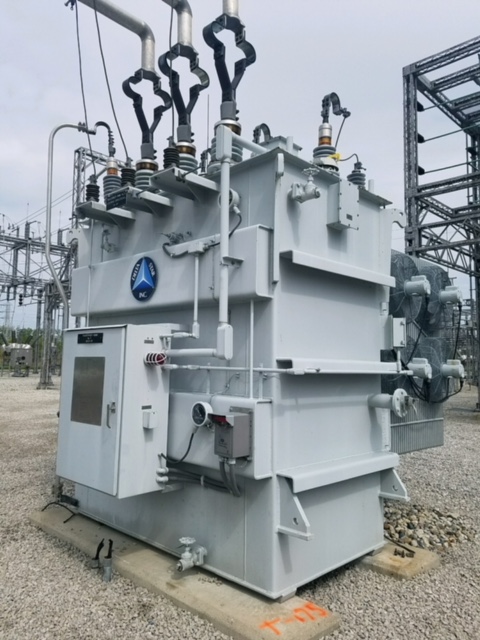

ONE (1) 12/16/20 MVA DELTA STAR SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS ONAN/ONAF/ONAF, 65 DEG. C RISE, 9.0% IMPEDANCE, COPPER
WINDINGS, 3 X 600:5 HV MRCT'S C800, 1 X 600:5 H0 MRCT C400, MFG. 2010

HIGH VOLTAGE: 45000Y/25980 BIL: 250 KV
LOW VOLTAGE: 2400 DELTA BIL: 110 KV
TAPS: 47250-46125-45000-43875-42750

TOTAL WEIGHT: 67,750 LBS.
CORE & COILS: 30,000 LBS.
TANK & FIT.: 19,000 LBS.
MAIN TANK OIL: 16,500 LBS. (2,200 GALS.)
RADIATOR OIL: 2,250 LBS. (300 GALS.)
