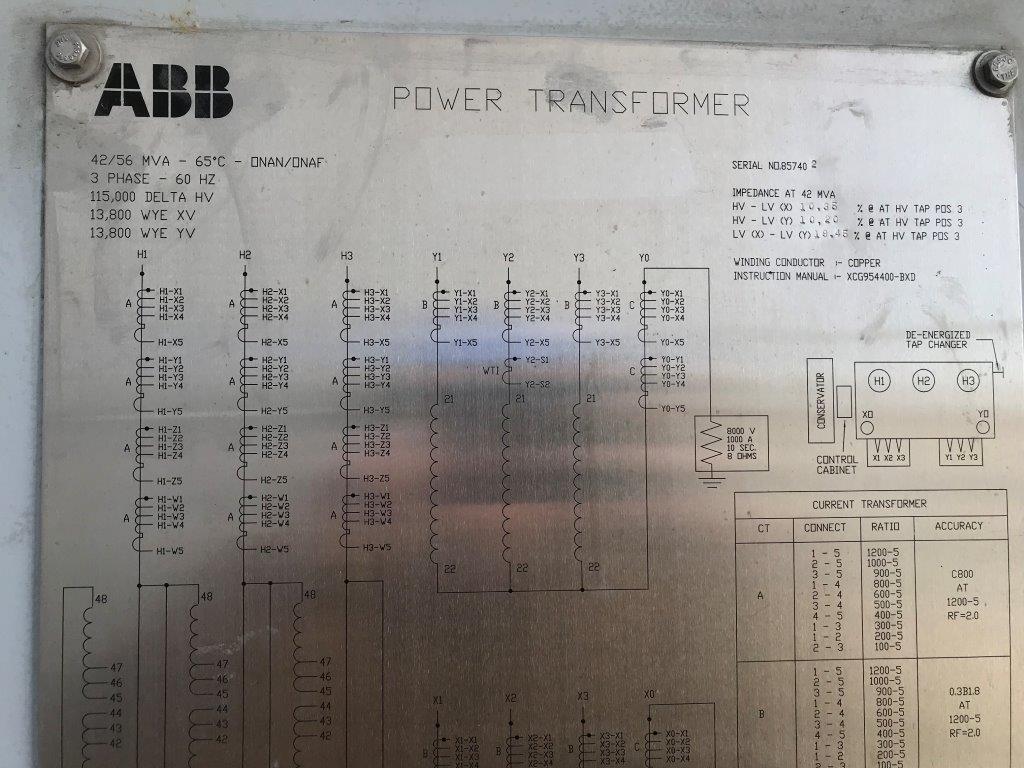

42000/56000 KVA, Pri 115000 D, Sec 13800 Y x 13800 Y, ABB, COPPER:2

ONE (1) 42/56 MVA ABB SUBSTATION TRANSFORMER WITH DUAL SECONDARY, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF, 65 DEG. C RISE, COPPER WINDINGS, 12 X
1200:5 HV MRCT'S C800, 6 X 1200:5 LV MRCT'S 0.3B1.8, 4 X 600:5 XO
MRCT'S C400, CONSERVATOR

HIGH VOLTAGE: 115000 DELTA BIL: 450 KV
LOW VOLTAGE: 13800 WYE BIL: 110 KV
LOW VOLTAGE: 13800 WYE BIL: 110 KV
TAPS: 120750-117875-115000-112125-109250
IMPEDANCE: HV-LV (X) 10.38% AT HV TAP POS. 3
HV-LV (Y) 10.20% AT HV TAP POS. 3
LV (X)-LV (Y) 118.45% AT HV TAP POS. 3

TOTAL WEIGHT: 225,013 LBS.

DIMENSIONS: 167.2"H X 282.6"L X 217.2"W
