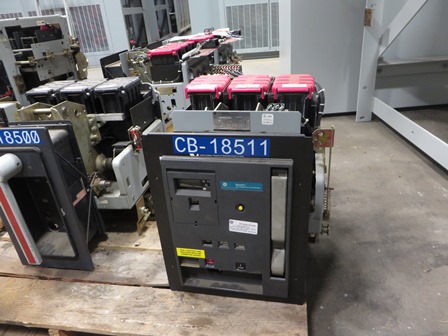

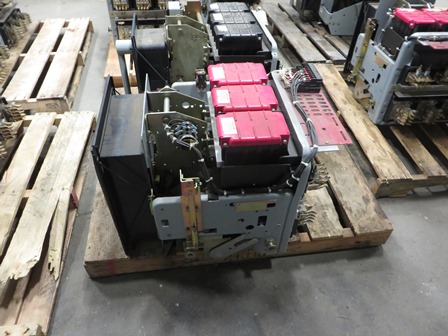

800 Amp, GE, WAVEPRO WPX-08, 480 V.,MANUALLY OPERATED, DRAW-OUT:1
AIR CIRCUIT BREAKER
Product Number:
041424
Full Product Description
CB-18511:
ONE (1) 800 AMP GENERAL ELECTRIC CIRCUIT BREAKER
TYPE WAVEPRO WPX-08+
CAT.# WE3DAQGXXXABXXX+
S/N P140006466-02-03+
635 VOLTS MAX.+
50/60 HERTZ+
3 POLES
MANUALLY OPERATED+
DRAW-OUT+
INST. BOOK DEH-134+
OUTLINE 10056546SH1+
RENEWAL PARTS BULLETIN DEF-004+

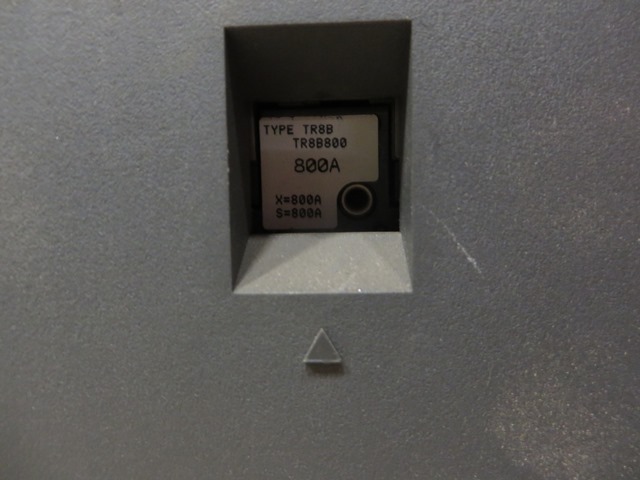

800 AMP RATING PLUG +
BELL ALARM+
UL LISTED+

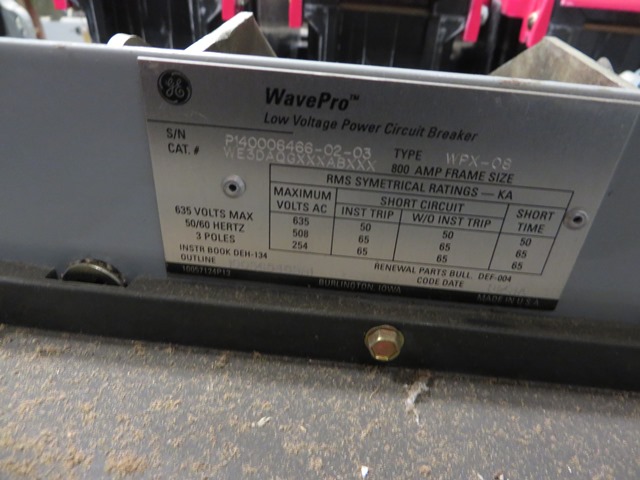

VOLTS 635 V MAX. 508 V 254 V
INST. TRIP 50 KA 65 KA 65 KA
W/O INST TRIP 50 KA 65 KA 65 KA
SHORT TIME 50 KA 65 KA 65 KA
ONE (1) 800 AMP GENERAL ELECTRIC CIRCUIT BREAKER
TYPE WAVEPRO WPX-08+
CAT.# WE3DAQGXXXABXXX+
S/N P140006466-02-03+
635 VOLTS MAX.+
50/60 HERTZ+
3 POLES
MANUALLY OPERATED+
DRAW-OUT+
INST. BOOK DEH-134+
OUTLINE 10056546SH1+
RENEWAL PARTS BULLETIN DEF-004+
800 AMP RATING PLUG +
BELL ALARM+
UL LISTED+
VOLTS 635 V MAX. 508 V 254 V
INST. TRIP 50 KA 65 KA 65 KA
W/O INST TRIP 50 KA 65 KA 65 KA
SHORT TIME 50 KA 65 KA 65 KA
