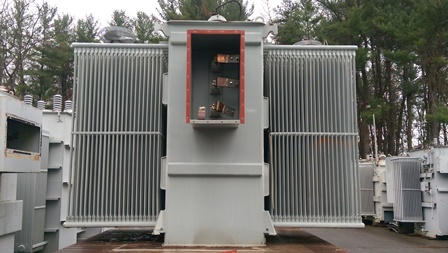

7500/10500 KVA, Pri 26400 D, Sec 4160Y/2402, GENERAL ELECTRIC, OIL SWITCH

JVT-3691

ONE (1) 7500/8400/9375/10500 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 6.77% IMPEDANCE,
RECONDITIONED BY ABB, COPPER WINDINGS, WITH POWELL-ESCO LV LOAD BREAK
OIL SWITCH (SEE BELOW)

HIGH VOLTAGE: 26400 DELTA BIL: 150 KV
LOW VOLTAGE: 4160Y/2402 BIL: 60 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 38,999 LBS.
CORE & COILS: 14,886 LBS.
TANK & FIT.: 11,791 LBS.
OIL: 12,322 LBS. (1,643 GALS.)

ONE (1) POWELL-ESCO LOAD BREAK SWITCH:
STYLE SY2T1
600 AMP
27 KV MAX. VOLTAGE
150 KV BIL
40 KA MOMENTARY
40 KA LATCH & HOLD
82 GALLONS OF OIL
