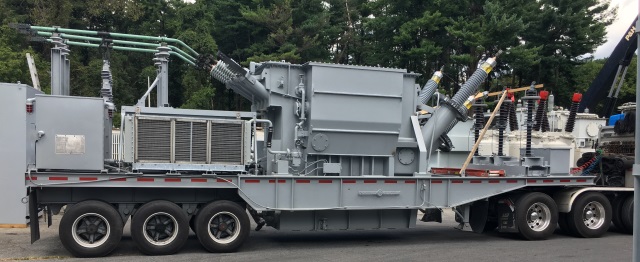

30000 KVA, Pri 69000 D x 138000 D, Sec 13200Y/7620 x 26400Y/15240, MOBILE
MOBILE TRANSFORMER
Product Number:
041381
Full Product Description
<
JVT-3679:<
<
ONE (1) 30 MVA MOBILE US TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS FOA, 75 DEG. C.
RISE, 17.2% IMPEDANCE, COPPER WINDINGS, 3 X 120 KV ARRESTERS, 3 X 60
KV ARRESTERS<
<
HIGH VOLTAGE: 69000 X 138000 DELTA
LOW VOLTAGE: 13200Y/7620 X 26400Y/15240<
TAPS: 144900-141450-138000-134500-131100<
TAPS: 72450-70725-69000-67275-65550<
<
TOTAL WEIGHT: 85,240 LBS.<
CORE & COILS: 34,600 LBS.
TANK & FIT.: 9,550 LBS.
MAIN TANK OIL: 22,100 LBS. (2,965 GALS.)<
PUMP & COOLER: 400 LBS. (55 GALS.)<
ON KINGPIN: 31,080 LBS.<
ON REAR WHEELS: 54,160 LBS.<
