20000 KVA, Pri 132000 D, Sec 13500Y/7790, WESTINGHOUSE, MOBILE:1

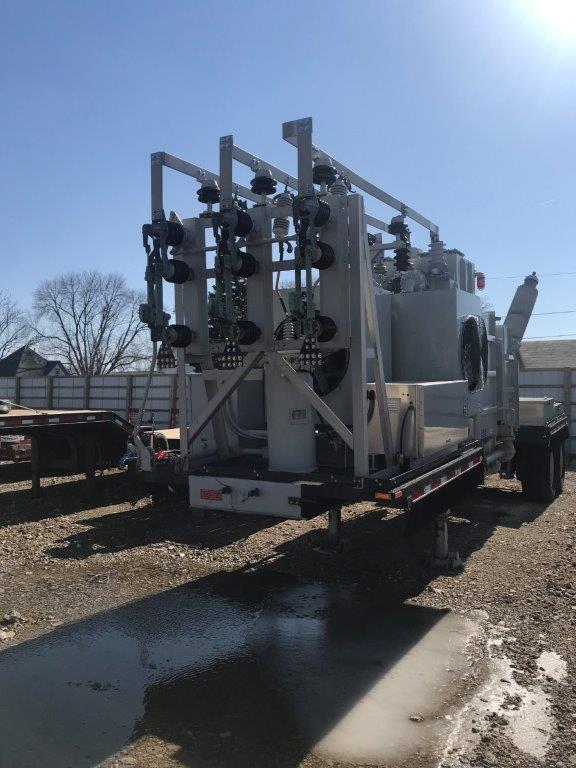

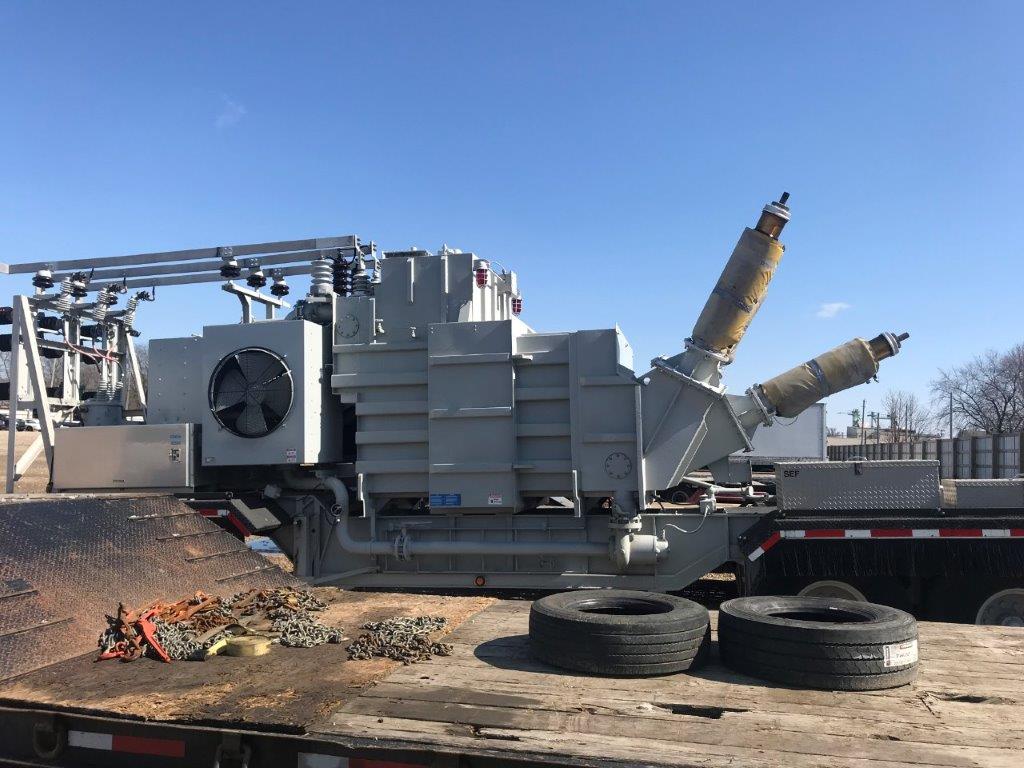

ONE (1) 20 MVA WESTINGHOUSE MOBILE TRANSFORMER WITH DISCONNECT SWITCH,

TRANSFORMER:
3 PHASE, 60 HERTZ, CLASS FOA, 75 DEG. C RISE, 14.4% IMPEDANCE,
3 X 600:5 HV MRCT'S, 3 X 1200:5 HV MRCT'S, 3 X 1200:5 LV MRCT'S,
1 X 600:5 XO MRCT, 3 X 15 KV ARRESTERS
HIGH VOLTAGE: 132000 DELTA BIL: 450 KV
LOW VOLTAGE: 13500Y/7790 BIL: 110 KV
TAPS: 139200-135600-132000-128400-124800

GROUP OPERATED PARALLEL DISCONNECT SWITCH:
1200 AMP S & C ALDUTI TYPE 14.4 KV LOAD BREAK DISCONNECT SWITCH

REMOVABLE GROUND
1 X 15 KVA AUXILIARY TRANSFORMER
. 13500Y TO 233Y/133
3 X 15 KV HEAVY DUTY FUSE CUTOUTS


TOTAL WEIGHT: 54,400 LBS.
CORE & COILS: 26,800 LBS.
TANK & FIT.: 10,000 LBS.
OIL: 8,700 LBS.
LV EQUIP.: 2,000 LBS.
TRAILER: 6,900 LBS. (1,160 GALS.)
