1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:

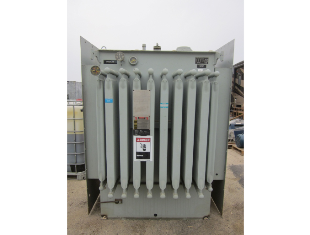

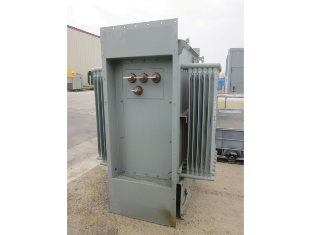

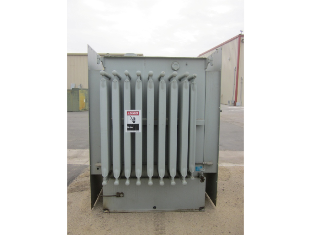

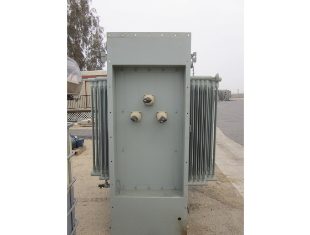

ONE (1) 1000 KVA WESTINGHOUSE SUBSTATION TRANSFORMER
SILICONE, CLASS OA, THREE PHASE, 65 DEG. C RISE

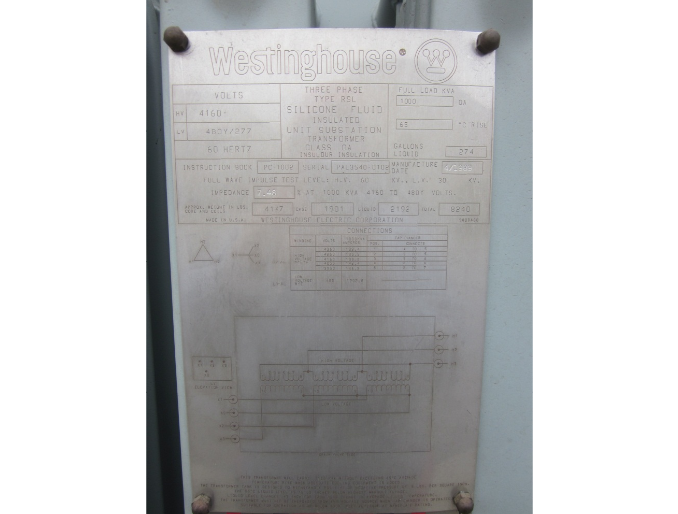

SERIAL NO. PAL3540-0102, IMP. 7.48%, INST. BOOK PC-1002

HV: 4160 DELTA BIL: 60 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 4360-4260-4160-4055-3950

TANK AND FITTING: 1901 LBS.
CORE AND COIL: 4147 LBS.
FLUID-SILCONE: 2192 LBS. (274 GALS.)
TOTAL WEIGHT: 8240 LBS.
