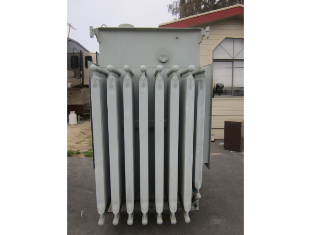

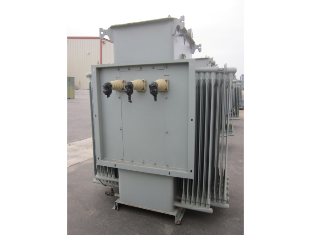

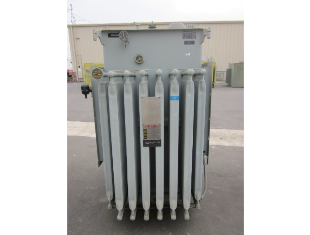

1000 KVA, Pri 4160 D, Sec 480Y/277, WESTINGHOUSE, SILICONE:
SILICONE SUBSTATION TRANSFORMER
Product Number:
041364
Full Product Description

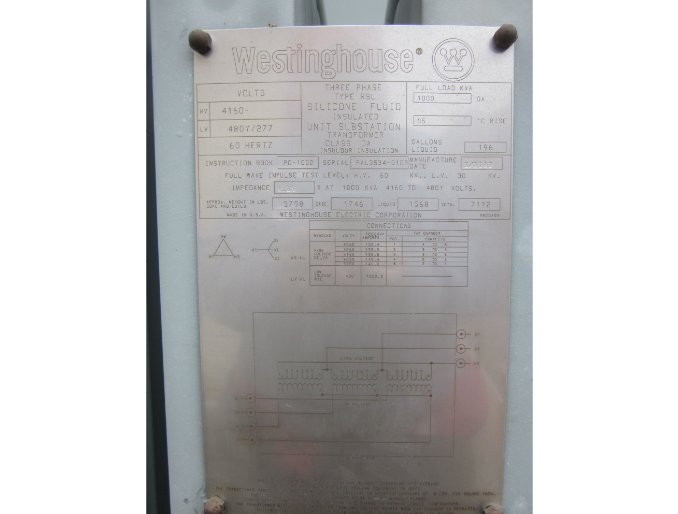

ONE (1) 1000 KVA WESTINGHOUSE SUBSTATION TRANSFORMER
SILICONE, CLASS OA, THREE PHASE, 65 DEG. C RISE
SERIAL NO. PAL3534-0102, IMP. 6.28%, INST. BOOK PC-1002
HV: 4160 DELTA BIL: 60 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 4360-4260-4160-4055-3950
TANK AND FITTING: 1746 LBS.
CORE AND COIL: 3798 LBS.
FLUID-SILCONE: 1568 LBS. (196 GALS.)
TOTAL WEIGHT: 7112 LBS.
SILICONE, CLASS OA, THREE PHASE, 65 DEG. C RISE
SERIAL NO. PAL3534-0102, IMP. 6.28%, INST. BOOK PC-1002
HV: 4160 DELTA BIL: 60 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 4360-4260-4160-4055-3950
TANK AND FITTING: 1746 LBS.
CORE AND COIL: 3798 LBS.
FLUID-SILCONE: 1568 LBS. (196 GALS.)
TOTAL WEIGHT: 7112 LBS.
