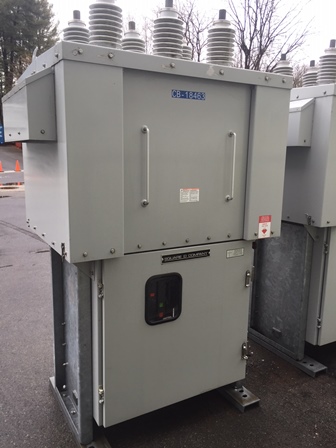

2000 Amp, SQUARE D, FVR1201125A, 15.5 KV, 3 PHASE, 125 VDC CONTROLS:1

CB-18463

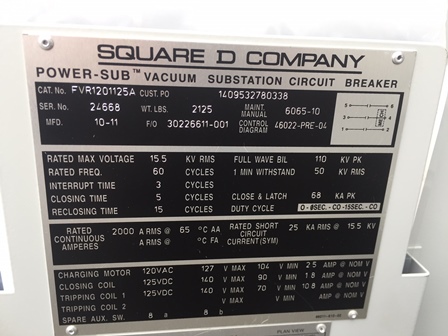

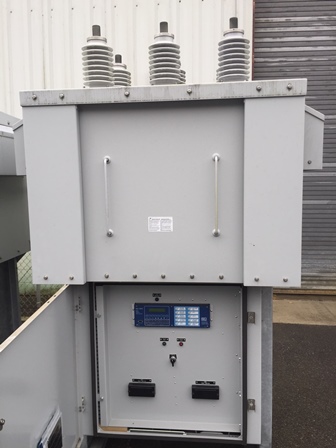

ONE (1) 2000A SQUARE D VACUUM CIRCUIT BREAKER
RATED MAX VOLTAGE 15.5 KV RMS
RATED FREQUENCY 60 CYCLES
INTERRUPT TIME 3 CYCLES
CLOSING TIME 5 CYCLES
RECLOSING TIME 15 CYCLES
FULL WAVE BIL 110 KV PK
1 MIN WITHSTAND 50 KV RMS
CLOSE AND LATCH 68 KA PK
DUTY CYCLE O - O SEC. - CO - 15 SEC. - CO
RATED SHORT CIRCUIT CURRENT (SYM) 25 KA RMS @ 15.5 KV

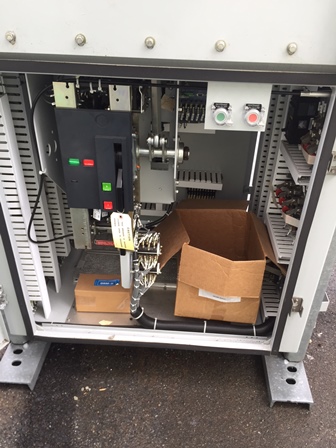

CHARGING MOTOR 12O VAC
CLOSE AND TRIP COIL 125 VDC
SERIAL NO. 24668, MAINT. MANUAL 6065-10
CONTROL DIAGRAM 46022-PRE-04

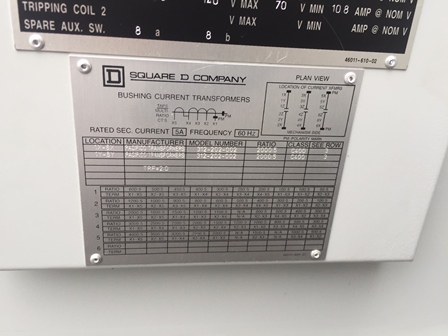

MRCT'S RATED SEC. CURRENT - 5A, FREQUENCY 60 HERTZ
CT RATIO 2000:5, C400, MODEL NO. 312-202-002, TRF = 2.0

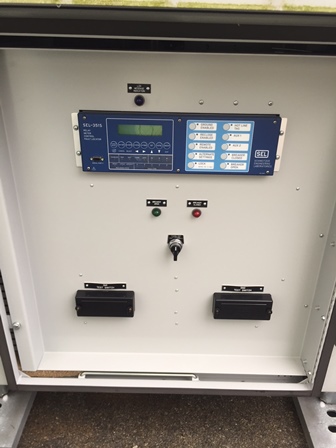

SCHWEITZER RELAY SEL-3515
WEIGHT: 2125 LBS., MFG. 10-2011
