500 KVA, Pri 4160 D X 12470 D, Sec 208Y/120, WESTINGHOUSE, LIVE, RADIAL

https://belyeapower.redstormlabs.com/web/image/product.template/30935/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 041328
    Request Quote

    Full Product Description

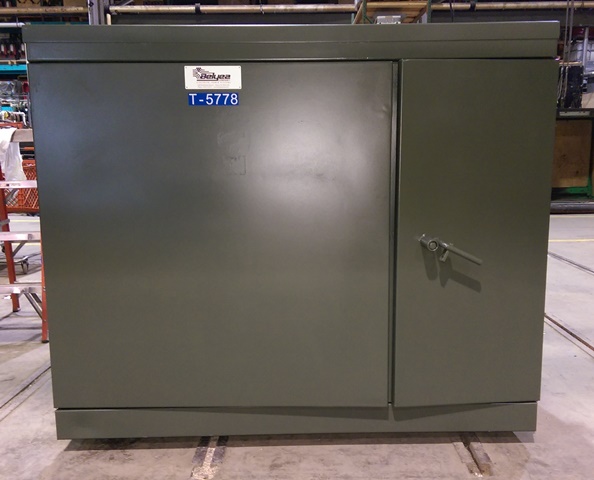

    T-5778:

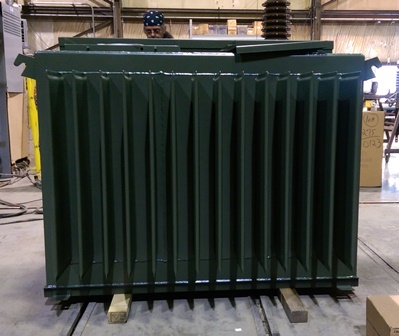

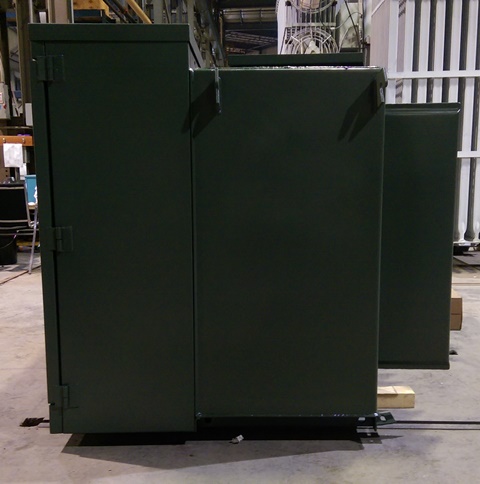

    ONE (1) 500 KVA WESTINGHOUSE COMPARTMENTALIZED PADMOUNT TRANSFORMER,
    3 PHASE, 60 HERTZ, CLASS OA, 65 DEG. C RISE, 2.1% IMPEDANCE,

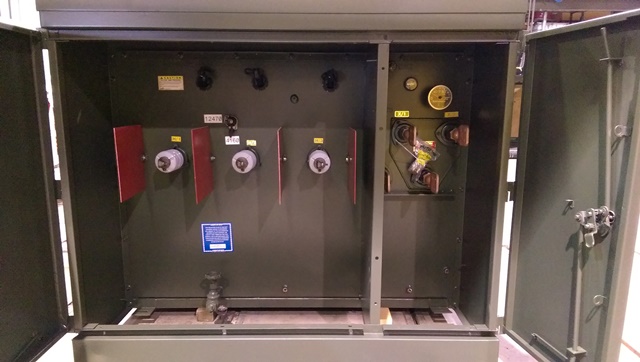

    LIVE FRONT, RADIAL FEED, VACUUM/PRESSURE GAUGE, LIQUID LEVEL
    GAUGE, LIQUID TEMPERATURE GAUGE, FUSES

    HIGH VOLTAGE: 4160 DELTA BIL: 95 KV
    HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
    LOW VOLTAGE: 208Y/120 BIL: 30 KV

    APPROX. WEIGHT: 5,550 LBS.
    DIMENSIONS: 55"H X 96"W X 57"D
