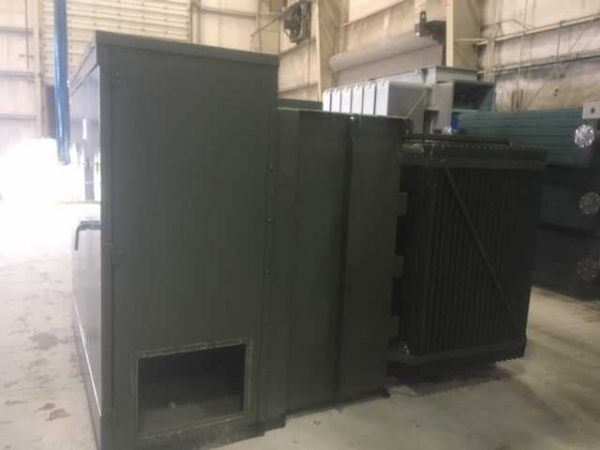

1500 KVA, Pri 34500Y/19920, Sec 480Y/277, ATSCO, LIVE FRONT/RADIAL FEED:1

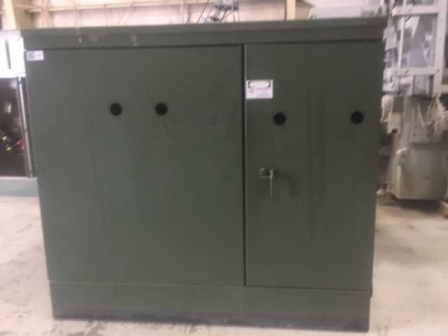

ONE (1) 1500 KVA ATSCO COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.7% IMPEDANCE,LIVE FRONT,
RADIAL FEED, DRAIN & SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID

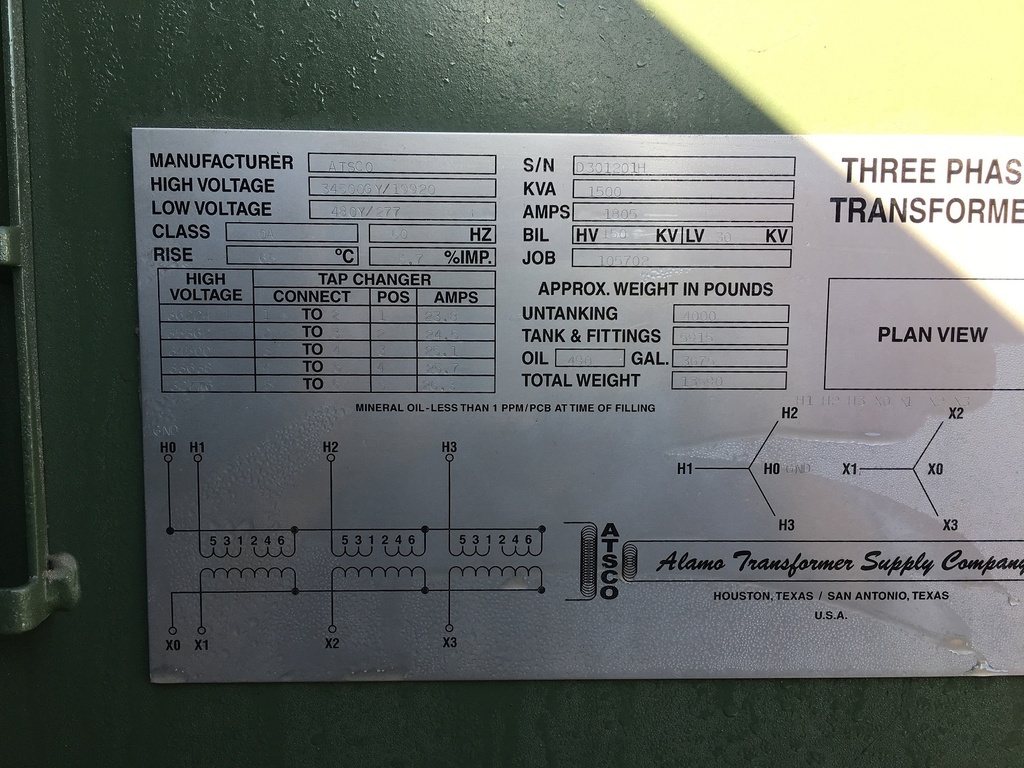

LEVEL GAUGE, PRESSURE RELIEF VALVE, S/N D301201H

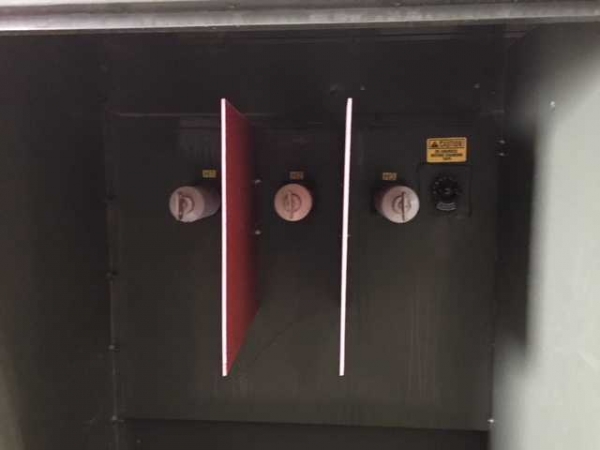

HIGH VOLTAGE: 34500Y/19920 BIL: 150 KV

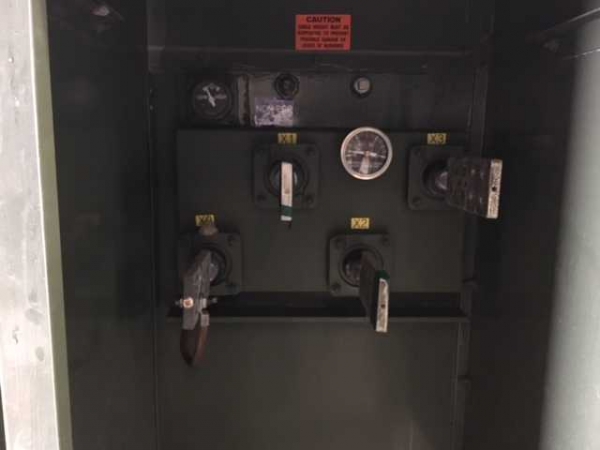

LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 36224-35362-34500-33638-32775

TOTAL WEIGHT: 13,590 LBS.
CORE & COILS: 4,000 LBS.
TANK & FIT.: 5,915 LBS.
OIL: 3,675 LBS. (490 GALS.)
DIMENSIONS: 72"H X 84"W X 107"D
HV BUSHING: 55"H
LV BUSHING: 47"H & 55"H
