3000/3360 KVA, Pri 34500 D, Sec 480 D, 2007, SQUARE D, LIVE FRONT/RADIAL FEED:1
PADMOUNT TRANSFORMER
Product Number:
041288
Full Product Description
JVT-3658:

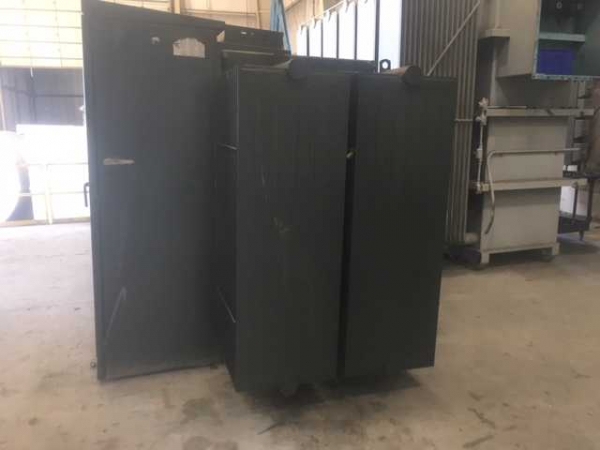

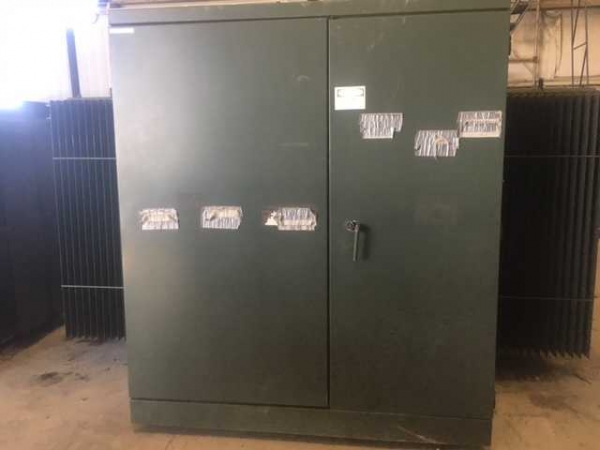

ONE (1) 3000/3360 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS ONAN, 55/65 DEG. C RISE, 6.01%
IMPEDANCE, LIVE FRONT, RADIAL FEED, ALUMINUM WINDINGS, DRAIN &
SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE

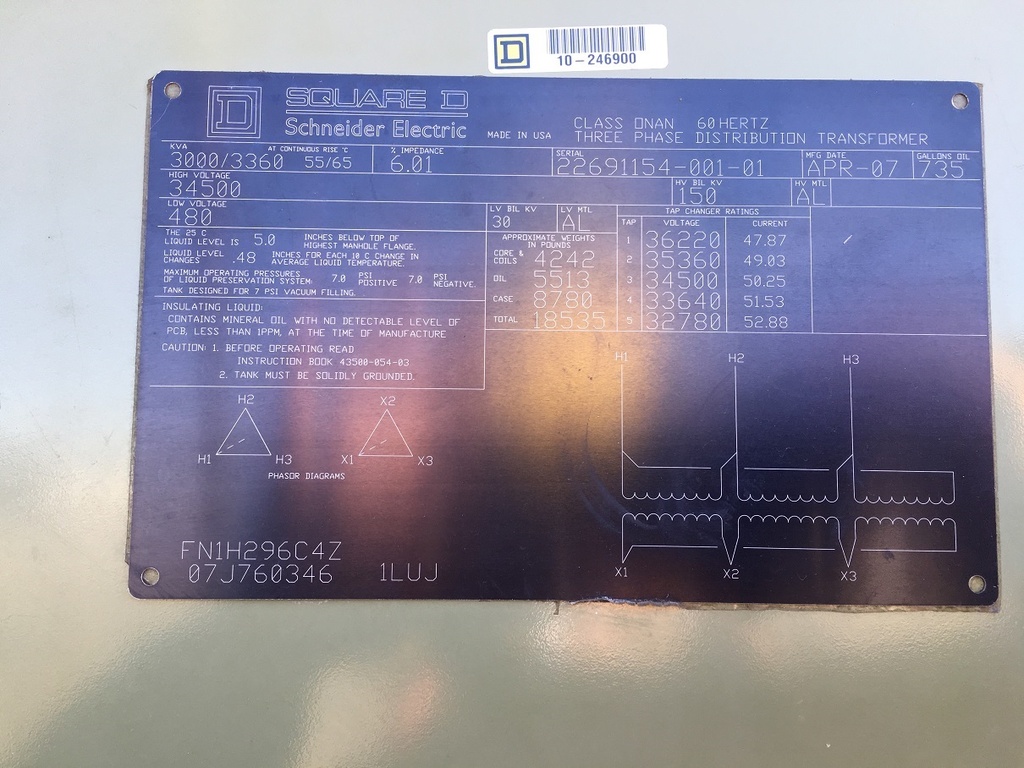

VACUUM GAUGE, PRESSURE RELIEF VALVE, S/N 226-91154-001-01,
MFG. 2007
HIGH VOLTAGE: 34500 DELTA BIL: 150 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 36220-35360-34500-33640-32780
TOTAL WEIGHT: 18,535 LBS.
CORE & COILS: 4,242 LBS.
TANK & FIT.: 8,780 LBS.
OIL: 5,513 LBS. (735 GALS.)
DIMENSIONS: 82"H X 125"W X 90"D
HV BUSHING: 43"H

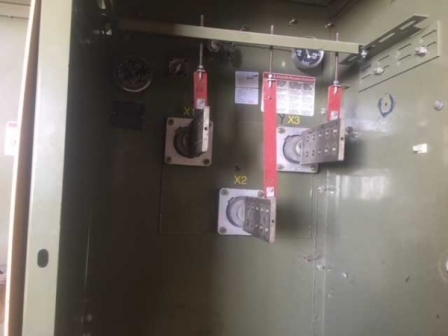

LV BUSHING: 60"H & 54"H
