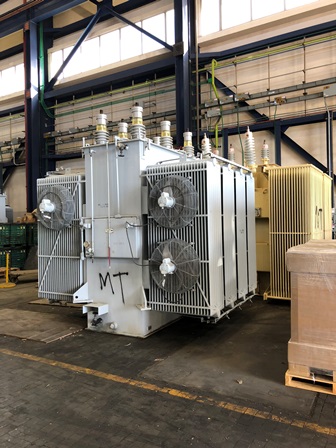

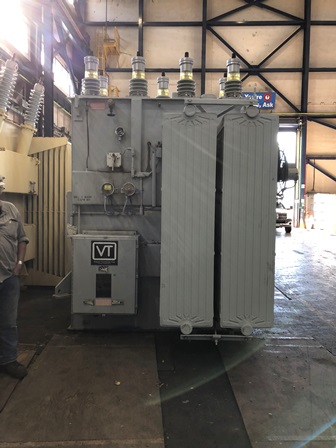

7500/10500 KVA, Pri 12000 D, Sec 4360Y/2517, VIRGINIA, COPPER
SUBSTATION TRANSFORMER
Product Number:
041256
Full Product Description
JVT-3686:

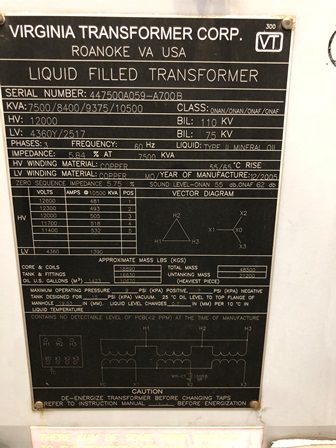

ONE (1) 7500/8400/9375/10500 KVA VIRGINIA TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS ONAN/ONAN/ONAF/ONAF, 55/65 DEG. C RISE, 5.84% IMPEDANCE,
COPPER WINDINGS, TOP X TOP BUSHINGS, MFG. 2005
HIGH VOLTAGE: 12000 DELTA BIL: 110 KV
LOW VOLTAGE: 4360Y/2517 BIL: 75 KV
TAPS: 12600-12300-12000-11700-11400
TOTAL WEIGHT: 48,500 LBS.
CORE & COILS: 18,890 LBS.
TANK & FIT.: 16,630 LBS.
LIQUID: 10,670 LBS. (1,423 GALS.)
