4000 Amp, GENERAL ELECTRIC, AKR-10D-100, 635 V., LOW VOLT, 50/60 HERTZ

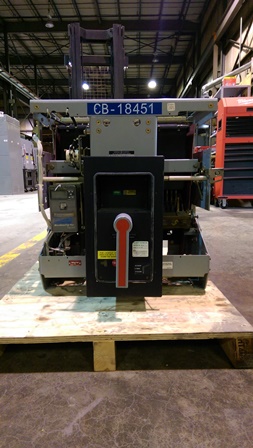

CB-18541

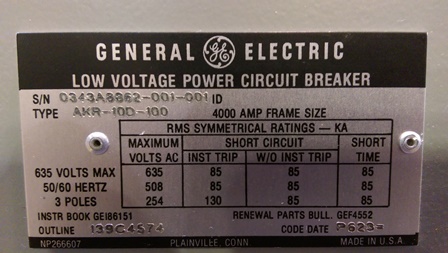

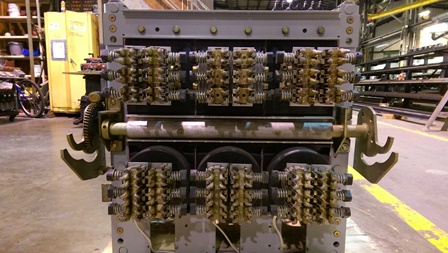

ONE (1) 4000 AMP GE LOW VOLTAGE POWER CIRCUIT BREAKER
635 VOLTS MAX
50/60 HERTZ
3 POLES, DRAW OUT
RMS SYMMETRICAL RATINGS - KA
MAX. VOLTS AC INST TRIP W/O INST TRIP SHORT TIME 635
635 85 85 85
508 85 85 85
254 130 85 85
S/N 0343A8862-001-001
INSTR BOOK - GE186151
OUTLINE - 139C4574
RENEWAL PARTS BULL. GEF4552

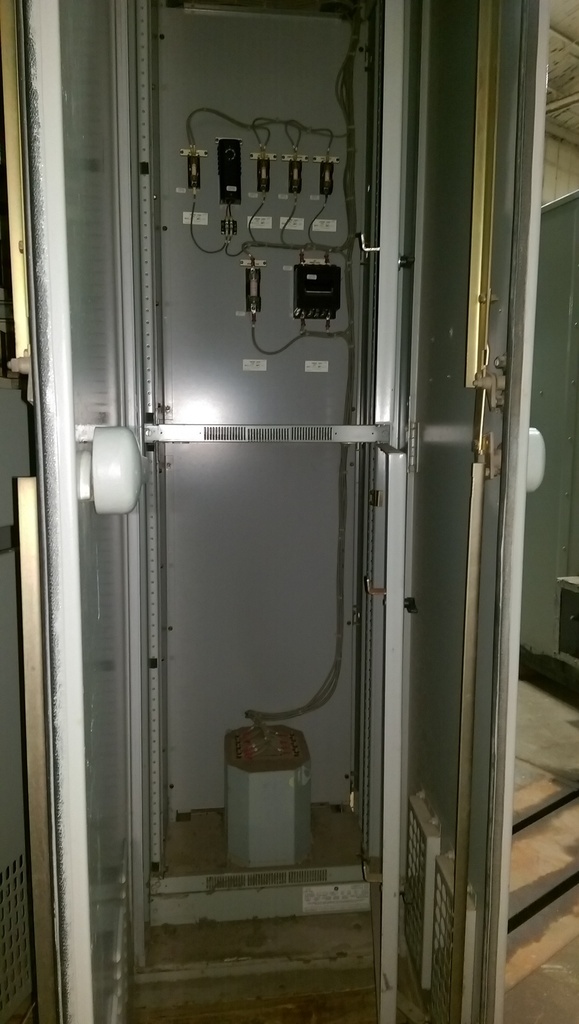

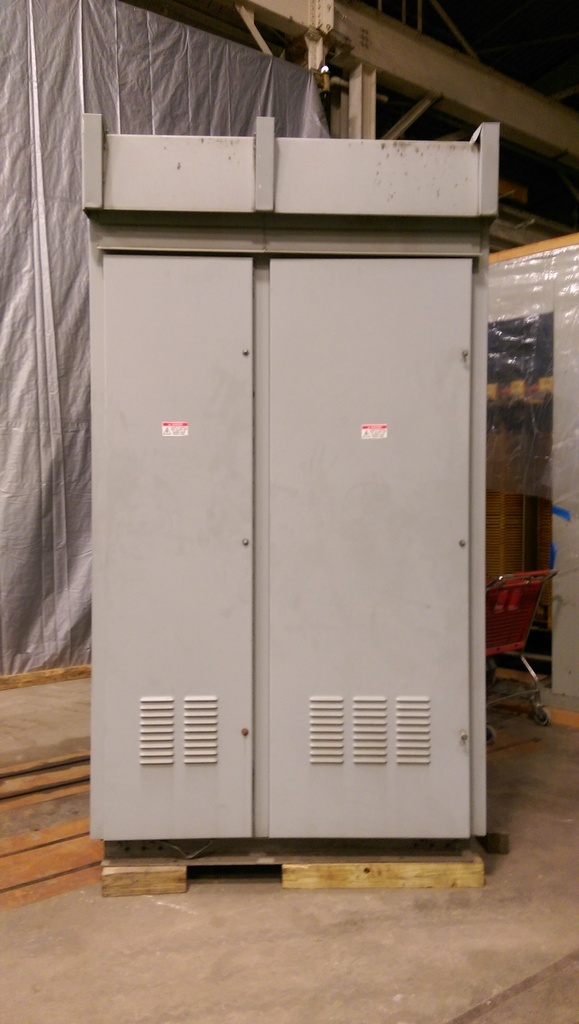

CB-18451A - GE SUBSTATION CABINET
1 - 5 KVA GE TRANSFORMER
60 HERTZ, 115 DEG C TEMP RISE, FRAME 99
240/480V TO 120/240V, SINGLE PHASE
CAT. # 9T22B4311
