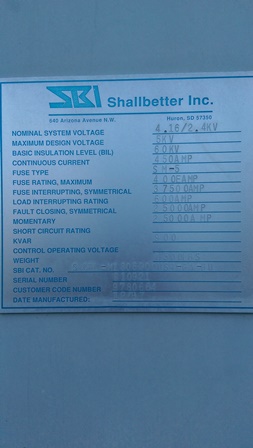

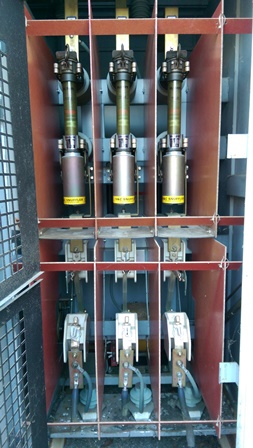

900 KVAR, 4.16/2.4 KV NOMINAL, 450 AMP CC, FUSE TYPE SM-5, SHALLBETTER, OUTDOOR

B-13567

ONE (1) 900 KVAR SHALLBETTER OUTDOOR CAPACITOR BANK
3-SECTION, 3-STEPS 300/600/900 KVAR
NOMINAL SYSTEM VOLTAGE 4.16/2.4 KV
MAXIMUM DESIGN VOLTAGE 4 KV
60 KV BIL, SERIAL NO. S10921
CONTINUOUS CURRENT - 450 AMP
9 X 100 KVAR, 75 BIL, 2400 V
COPPER - NXC OUTDOOR CAPACITOR FUSE
65C AMP, 3.8KV MAX, 50KA SYM INTERUPTING RATING
ALSTOM NOVAR 300 CONTROL CABINET

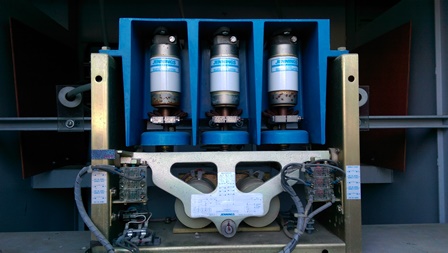

ABB VERSA-RUPTER INVERTED SWITCH
17KV MAX, 110KV BI, 600A CONTINOUS
A.C.C.C. RO6, CATALOG NO. 244-042-507
FUSE-TYPE - SM-5S, REFILL UNIT SM-5
FUSES 200E - 400E MAX AMPS
7.2-8.3 KV NOMINAL MAX DESIGN
CATALOG NO. 86641R2
MODEL NO. 9F60 DJD005
MAX. KV 5.5, AMP 5E
60 HERTZ, IST. BOOK GEK-39196
AFP TRANSFORMERS CPT - 10KVA, 1PH, 60 HZ, CLASS F
4160 PRI. VOLTAGE, 240/120 SEC. VOLTAGE
TAPS +7 1/2%

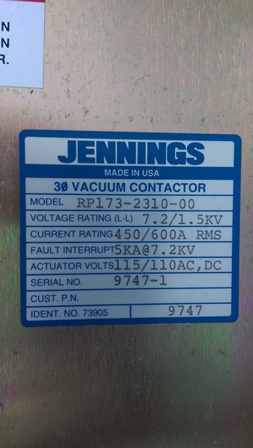

JENNINGS CONTACTOR
RATING: DUTY CYCLE 3KV, MCOV 2.35KV
MODEL RP173-2310-00
VOLTAGE RATING (L-L) 7.2/1.5KV
CURRENT RATING 450/600A RMS
FAULT INTERRUPT 5KA @7.2KV
ACTUATOR VOLTS 115/110 AC/DC
SERIAL NO. 9747-5
CHOKERS AND GROUNDING BLADES IN EACH CABINET
ABB KPI INTER. CLASS SURGE ARRESTERS
PRESSURE RELIEF CLASS 17KA RMS
STYLE NO. ER003AA002A
WEIGHT: 4500 LBS
DIMENSIONS: 15'X9'X6'10"D
