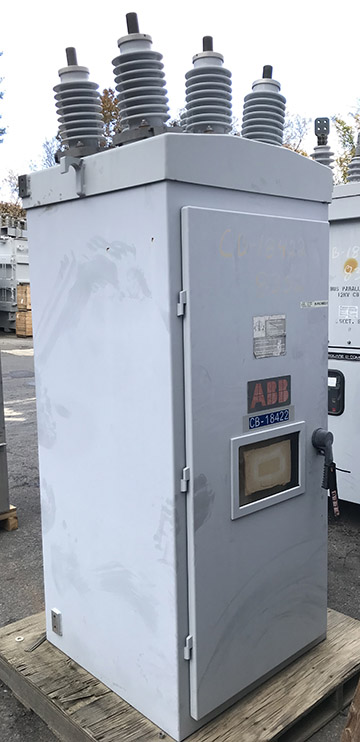

1200 Amp, ABB, ADVAC, 13800 V., O/D VACUUM, VM1-2412-25 MECH, UNUSED
UNUSED OUTDOOR VACUUM BREAKER
Product Number:
041193
Full Product Description
CB-18422:

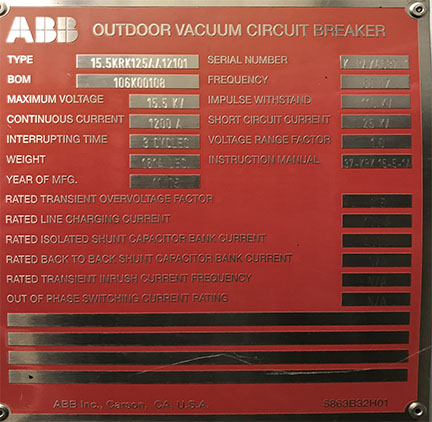

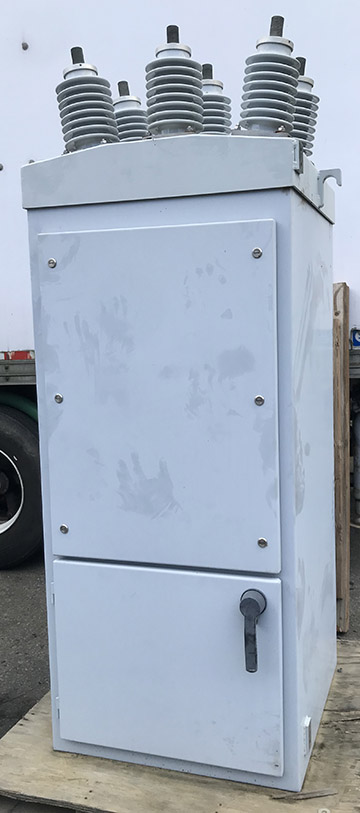

ONE (1) UNUSED 1200 AMP ABB OUTDOOR VACUUM CIRCUIT BREAKER
TYPE ADVAC 15.5KRK125AA12101
13800 VOLT
15500 VOLT MAX.
3 PHASE
60 HERTZ
110 KV BIL
3 CYCLE INTERRUPT
25 KAIC
RANGE FACTOR 1.0
VOLTAGE FACTOR 2.5
RATED LINE CHARGING CURRENT 100 AMP
RATED ISOLATION SHUNT CAPACITOR 400 AMP
BOM. 106K00108

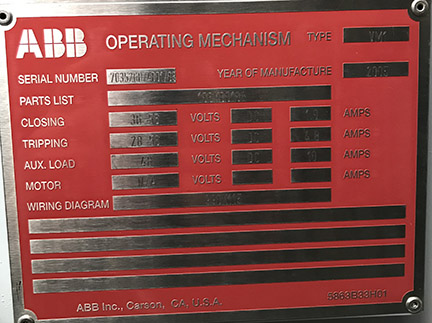

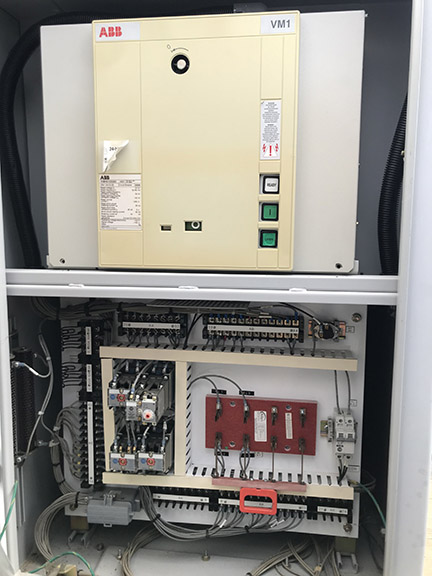

VM1 2412-25 MECHANISM
48 VDC CLOSE & TRIP
48 VDC AUXILIARY LOAD
6 X 1200:5 MRCT'S C200
PARTS LIST 106K00108
INSTRUCTION MANUAL 37-KRK15-5-1A
1,614 LBS.
