2000/2666 KVA, Pri 4160 D, Sec 480Y/277, 1996, GENERAL ELECTRIC, OUTDOOR, COPPER

T-5799:

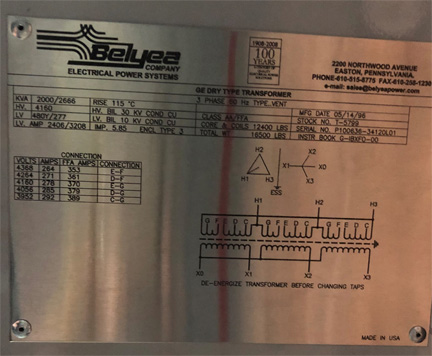

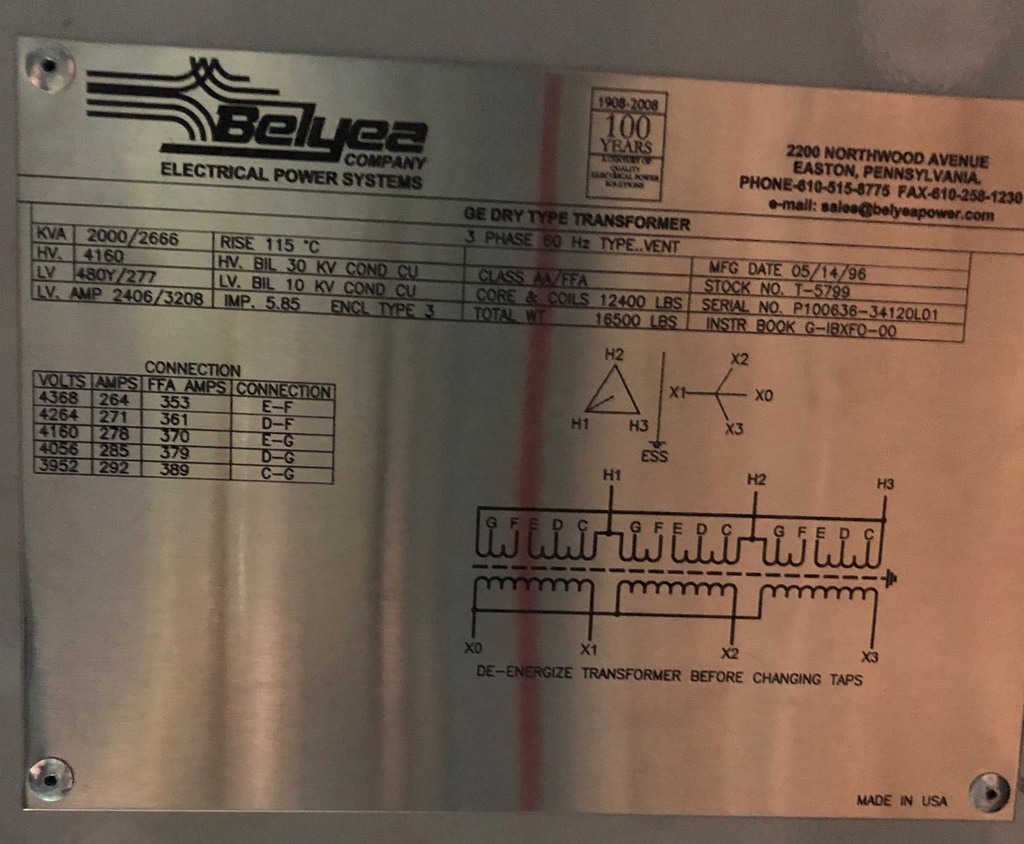

ONE (1) 2000/2666 KVA GENERAL ELECTRIC OUTDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/FA 115 DEGREE C RISE, 5.85% IMPEDANCE, COPPER
WINDINGS, S/N P100636-34120L01, MFG. 1996, INST. BOOK G-IBXFO-00

HIGH VOLTAGE: 4160 DELTA BIL: 30 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 4368-4264-4160-4056-3952

TOTAL WEIGHT: 16,500 LBS.

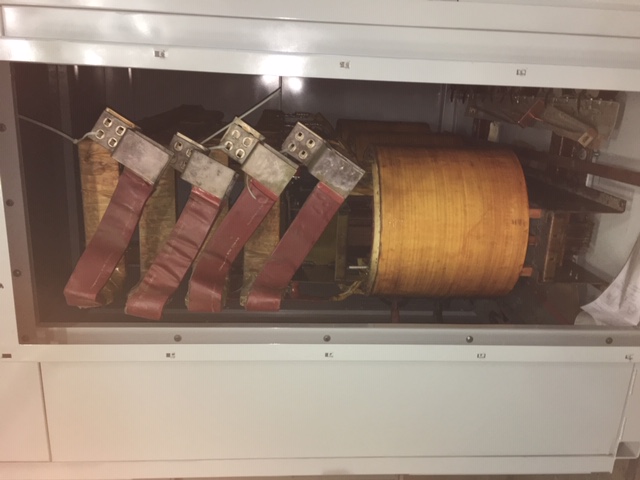

CORE & COILS: 12,400 LBS.

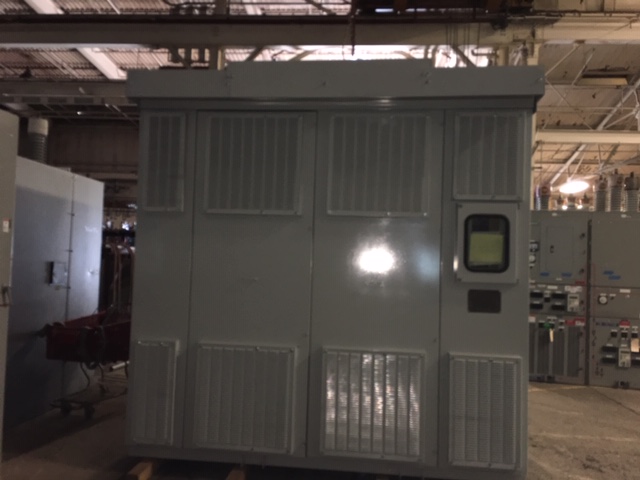

DIMENSIONS: 112"L x 66"W x 110" H
CORE & COIL DIMS: 103"L x 32.5"W x 81.25"H
