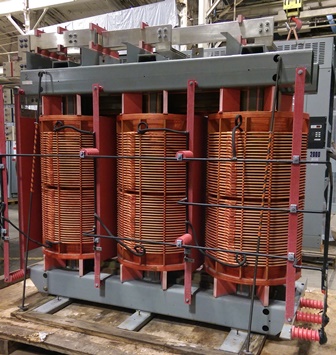

1000/1333 KVA, Pri 2400 D, Sec 208Y/120, CUTLER-HAMMER, ALUMINUM, INDOOR
DRY TYPE TRANSFORMER
Product Number:
041158
Full Product Description
JVT-3649:

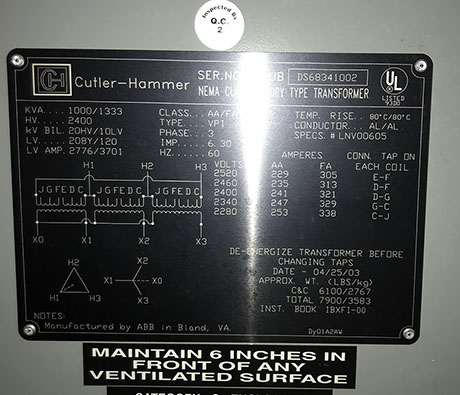

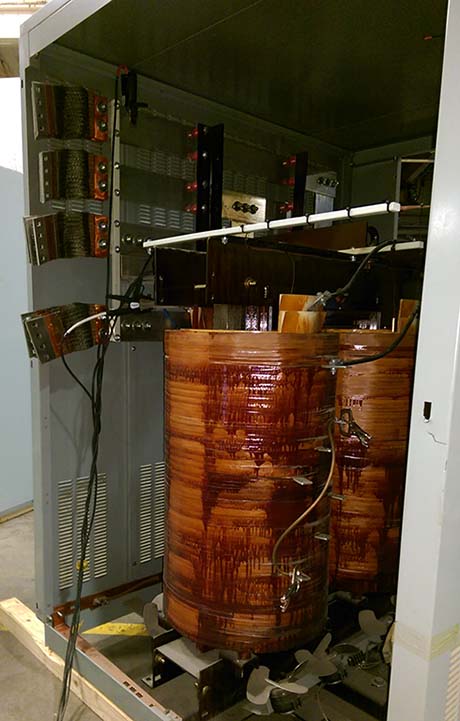

ONE (1) 1000/1333 KVA CUTLER-HAMMER INDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/FA, 80 DEG. C RISE, 6.38% IMPEDANCE, ALUMINUM
WINDINGS, UL LISTED, TYPE VPI, INST. BOOK IBXFI-00, MFG. 2003
HIGH VOLTAGE: 2400 DELTA BIL: 20 KV
LOW VOLTAGE: 208Y/120 BIL: 10 KV
TAPS: 2520-2460-2400-2340-2280
TOTAL WEIGHT: 7,900 LBS.
CORE & COILS: 6,100 LBS.
DIMENSIONS: 92"H X 78 1/2"L X 66"D
HV: 52"H
LV: 63"H
