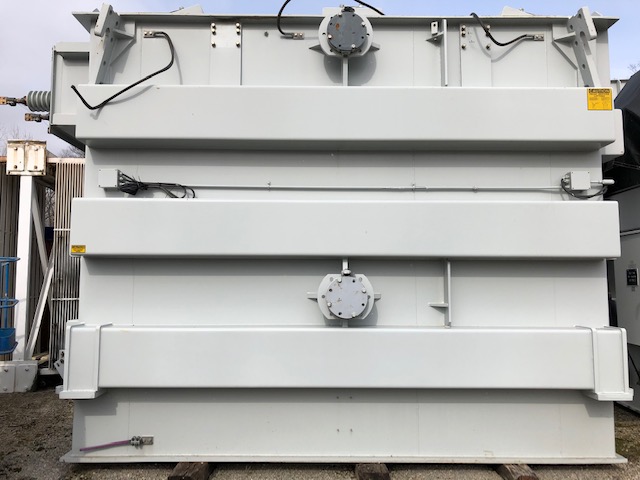

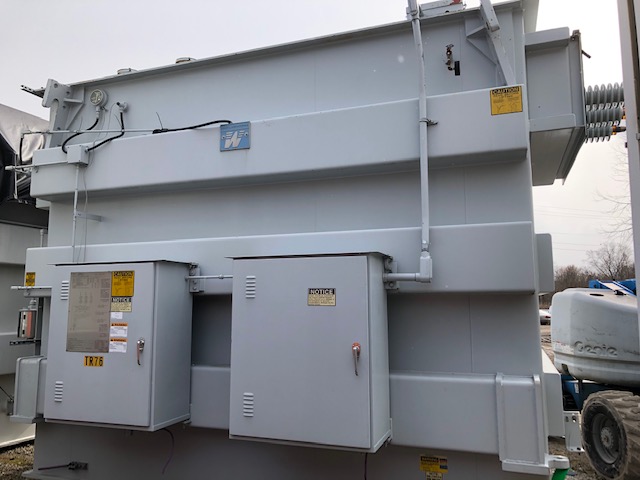

30000/56000 KVA, Pri 138000Y/79670, Sec 34500Y/19920, 2003, WAUKESHA. GSU

ONE (1) 30/33.6/40/44.8/50/56 MVA WAUKESHA GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF, 55/65 DEG. C RISE, 9,69%
IMPEDANCE, COPPER WINDINGS, 6 X HV 600:5 MRCT'S C800, 6 X LV 1200:5
MRCT'S C800, CONSERVATOR, MFG. 2003

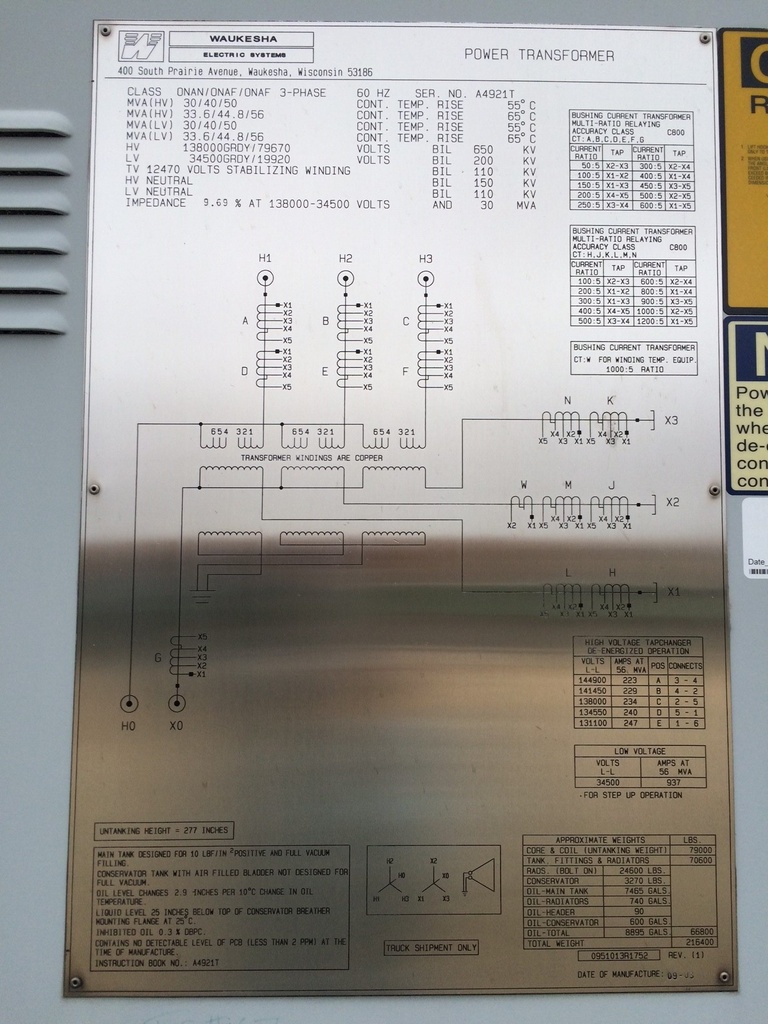

HIGH VOLTAGE: 138000GRDY/79670 BIL: 650 KV
LOW VOLTAGE: 34500GRDY/19920 BIL: 200 KV
TERTIARY: 12470 VOLTS BIL: 110 KV
TAPS: 144900-141450-138000-134550-131100

TOTAL WEIGHT: 216,400 LBS.
CORE & COILS: 79,000 LBS.
TANK & FIT.: 70,600 LBS.
OIL: 66,800 LBS. (8,895 GALS.)
RADIATORS: 24,600 LBS. (BOLT ON)
CONSERVATOR: 3,270 LBS.
MAIN TANK OIL: 7,465 GALS.
RADIATOR OIL: 740 GALS.
HEADER OIL: 90 GALS.
CONSERVATOR: 600 GALS.
