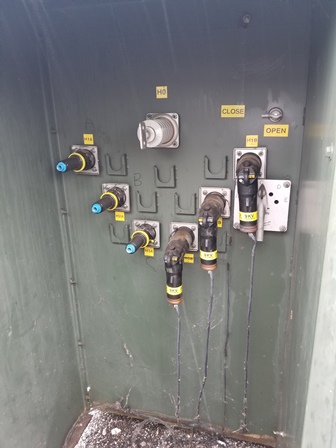

2500/2800 KVA, Pri 13200Y/7620, Sec 480 D, ATLANTIC POWER SYSTEMS, DEAD, LOOP
GSU PADMOUNT TRANSFORMER
Product Number:
041075
Full Product Description
ONE (1) 2500/2800 KVA ATLANTIC POWER SYSTEMS
GENERATOR STEP-UP COMPARTMENTALIZED
PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA, 55 DEG. C RISE,
6.1% IMPEDANCE, DEAD FRONT, LOOP FEED, DRAIN & SAMPLE VALVE, DIAL TYPE
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE

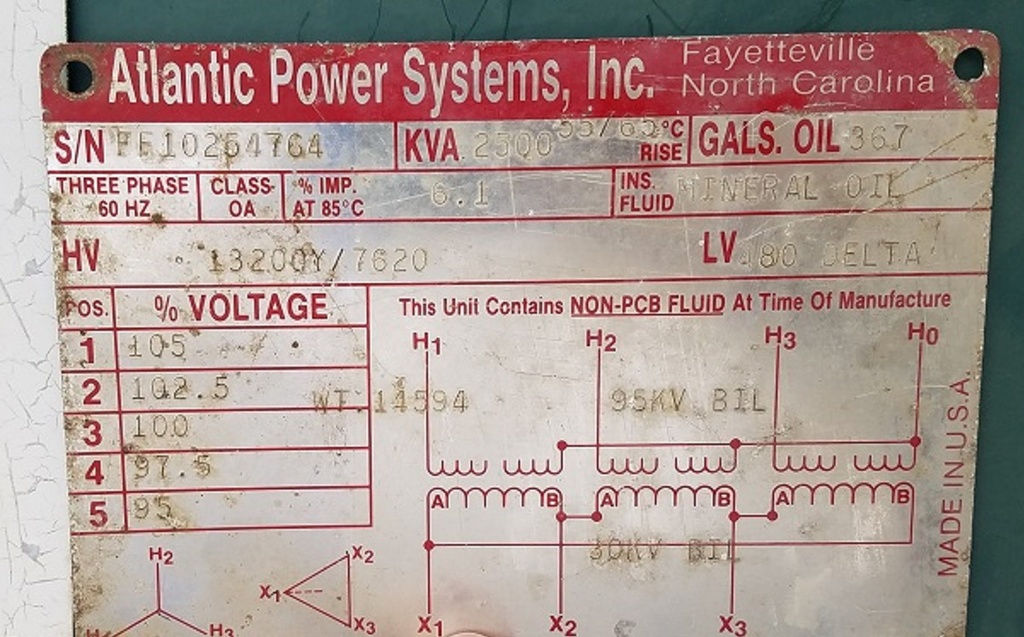

S/N FF10254764
HIGH VOLTAGE: 13200Y/7620 BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 2 +/- 2 1/2%
TOTAL WEIGHT: 14,594 LBS.
OIL: 367 GALS.
